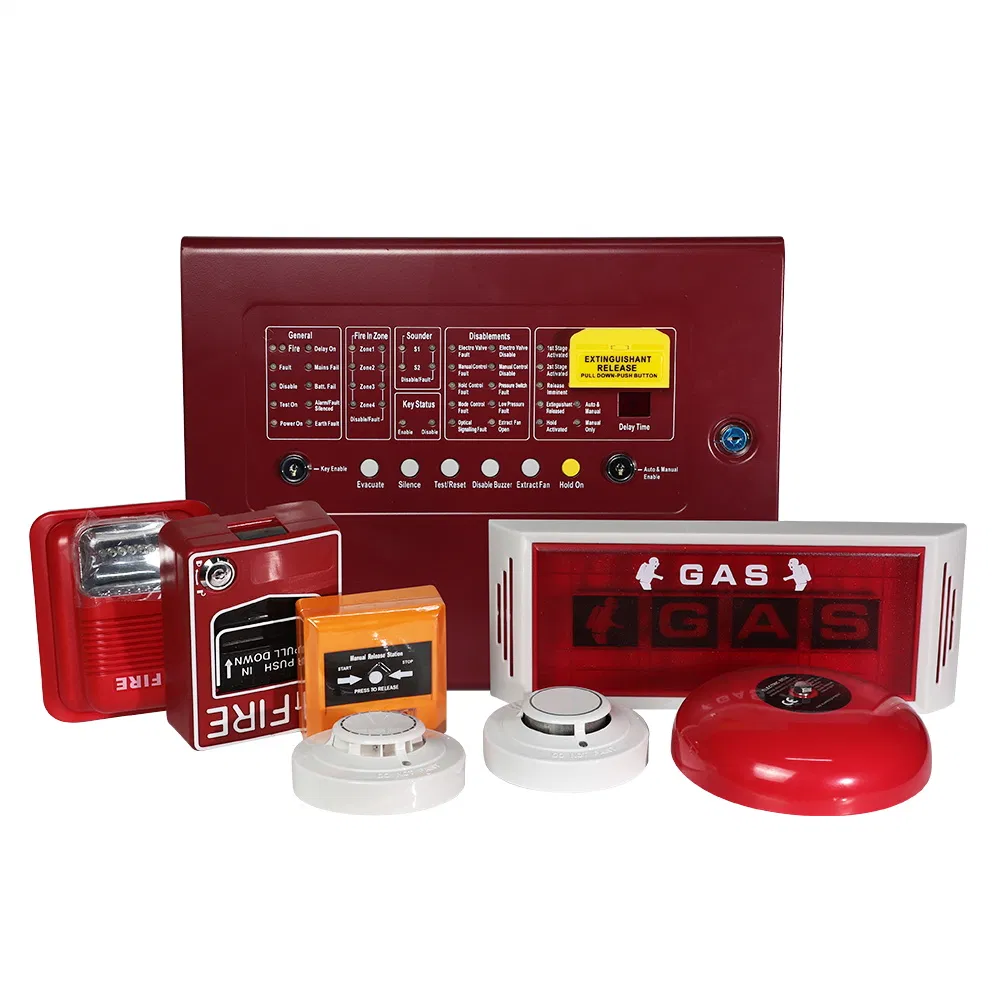

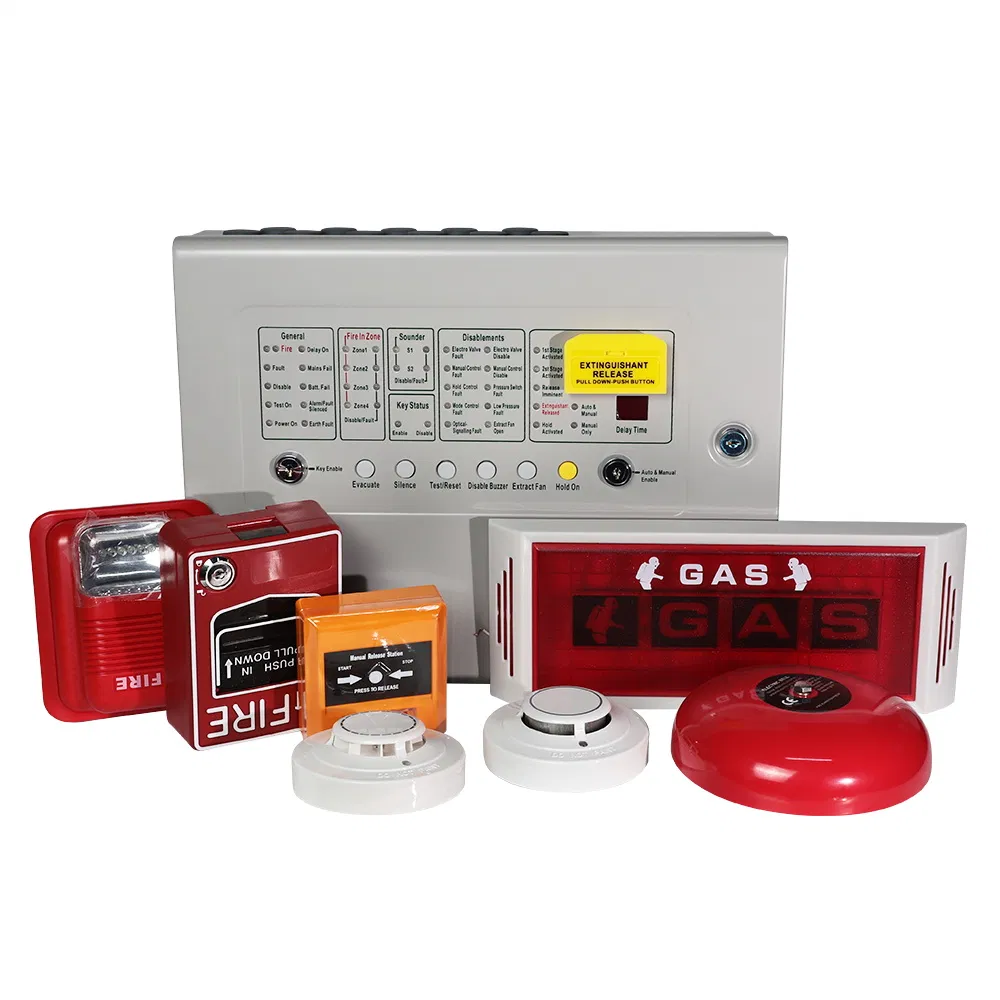

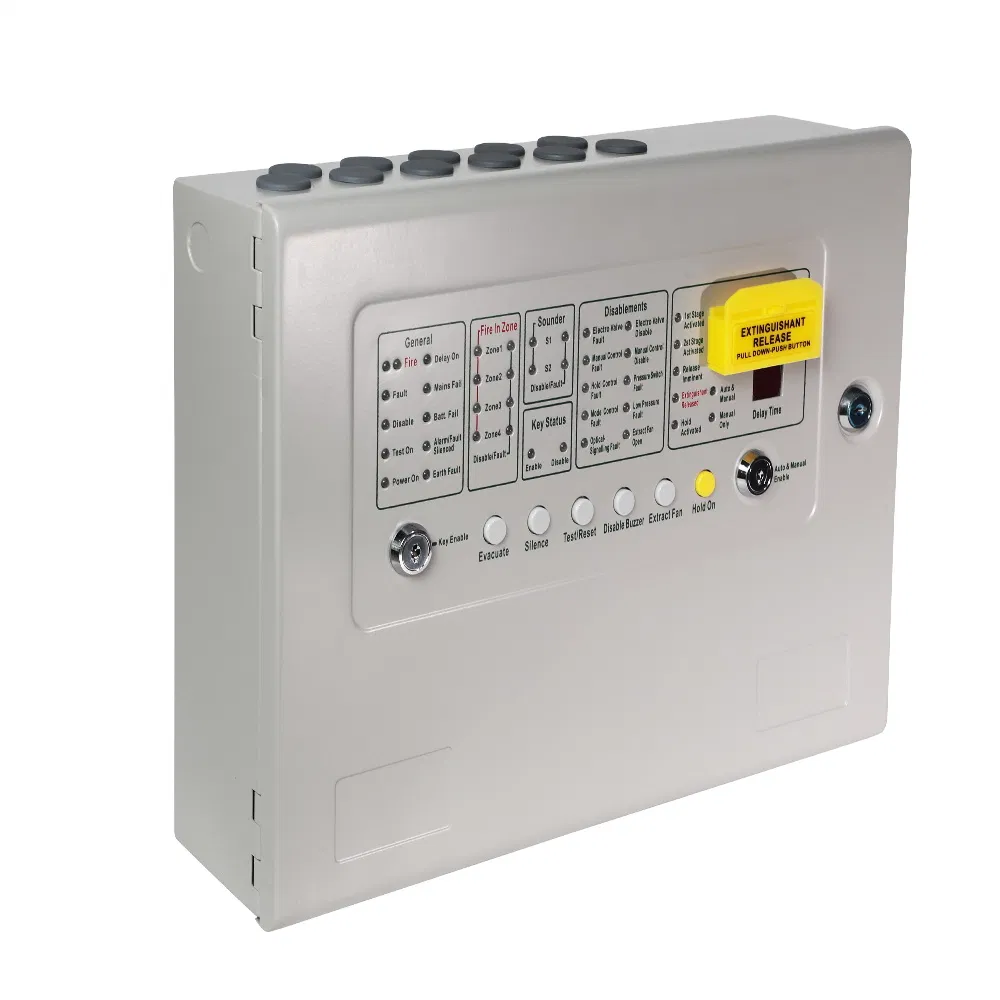

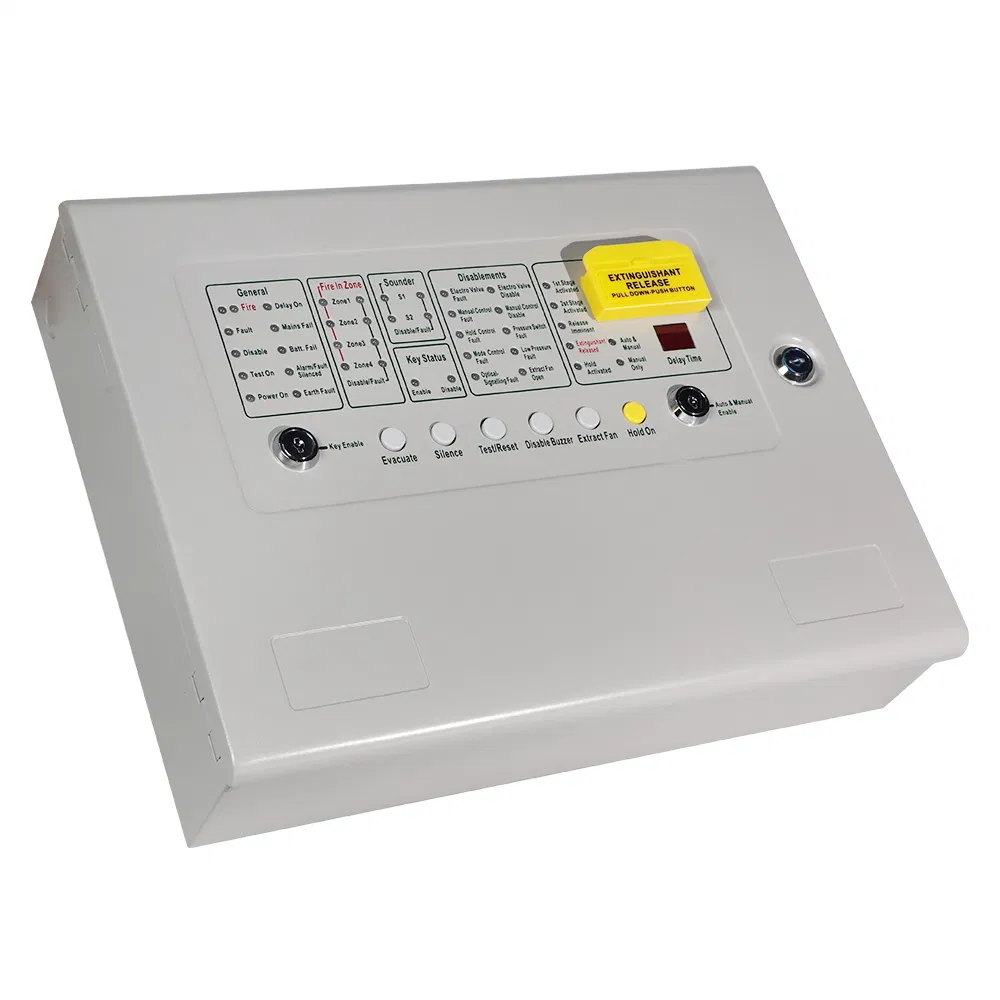

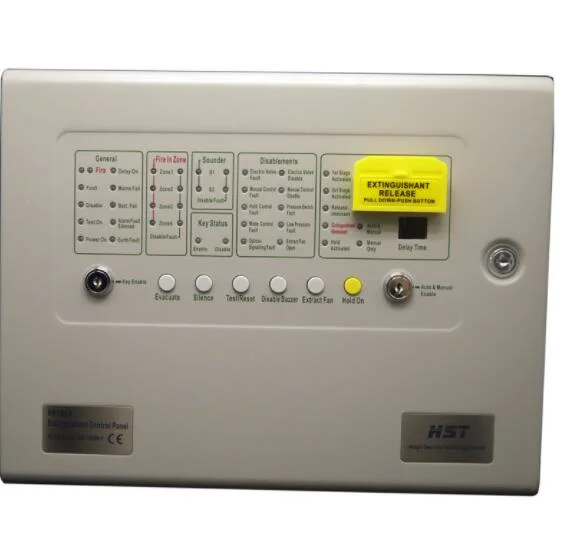

Product Overview

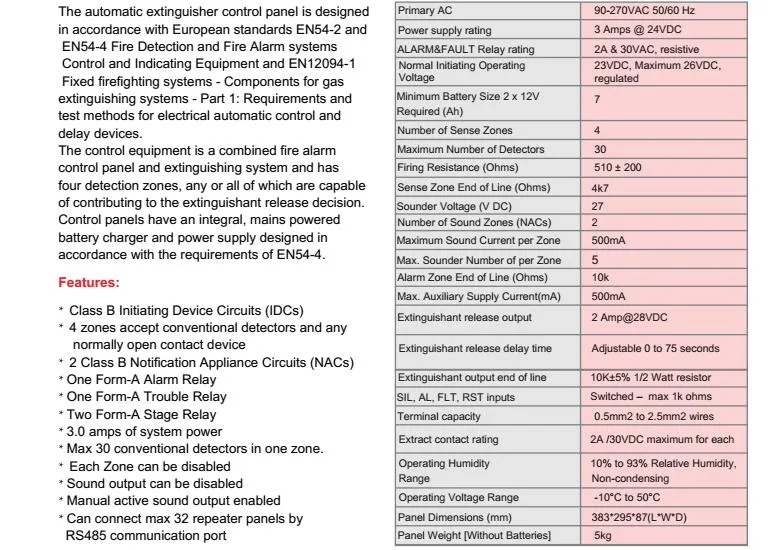

The automatic extinguisher control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems and EN12094-1 Fixed firefighting systems. This combined fire alarm control panel and extinguishing system features four detection zones, all capable of contributing to the extinguishant release decision.
Control panels include an integral, mains-powered battery charger and power supply compliant with EN54-4. Additional facilities include:
- Test Condition: Allows automatic resetting of zones for testing purposes (EN54-2 Section 10).
- Action Delay: Configurable delay for fire alarm devices (sounders) for alarm verification (EN54-2 Section 7.11).
- Fire Alarm Devices: Enables audible warnings throughout premises (EN54-2 Section 7.8).
- Extinguishing Signal Delay: Adjustable delay up to 75 seconds.
- Component Monitoring: Monitoring of low-pressure switch inputs.
- Emergency Hold: Device to extend extinguishant delay time.
- Manual Mode: Option to disable automatic release via detection devices.
Safety & Installation Requirements
Operational Requirements:
(i) IEE regulations for electrical equipment in buildings.
(ii) Codes of practice and statutory requirements.
(iii) This equipment is designed for 230V/50Hz mains and MUST be connected to a protective earthing conductor.
Environmental Limits: Indoor use only. Temperature range: -50ºC to +400ºC. Max humidity: 95%. IP Rating: IP30.
Frequently Asked Questions
Q1: How many detection zones does the CM-1004 control panel support?
The system supports 4 detection zones, any or all of which can contribute to the extinguishant release decision.
Q2: Which international standards does this panel comply with?
It is designed according to European standards EN54-2, EN54-4 (Fire Detection/Alarm) and EN12094-1 (Fixed Firefighting Components).
Q3: Can the extinguishing release be delayed manually?
Yes, the system allows for a programmable delay of the extinguishing signal for up to 75 seconds and includes an emergency hold device.
Q4: What are the power requirements and environmental limits?
It operates on a 230V/50Hz mains supply. It is rated IP30 for indoor use and functions within a wide temperature and humidity range (up to 95%).

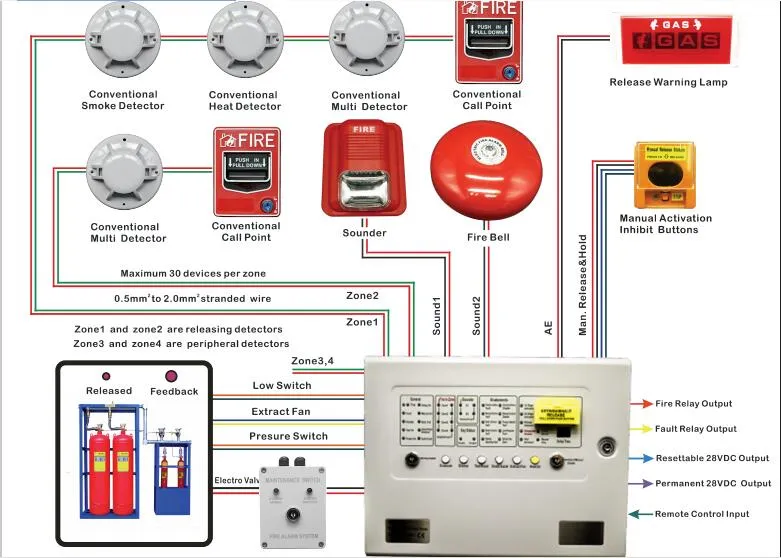

Q5: What types of detectors are compatible with the zones?
All zones accept standard two-wire smoke detectors and any normally-open contact devices.
