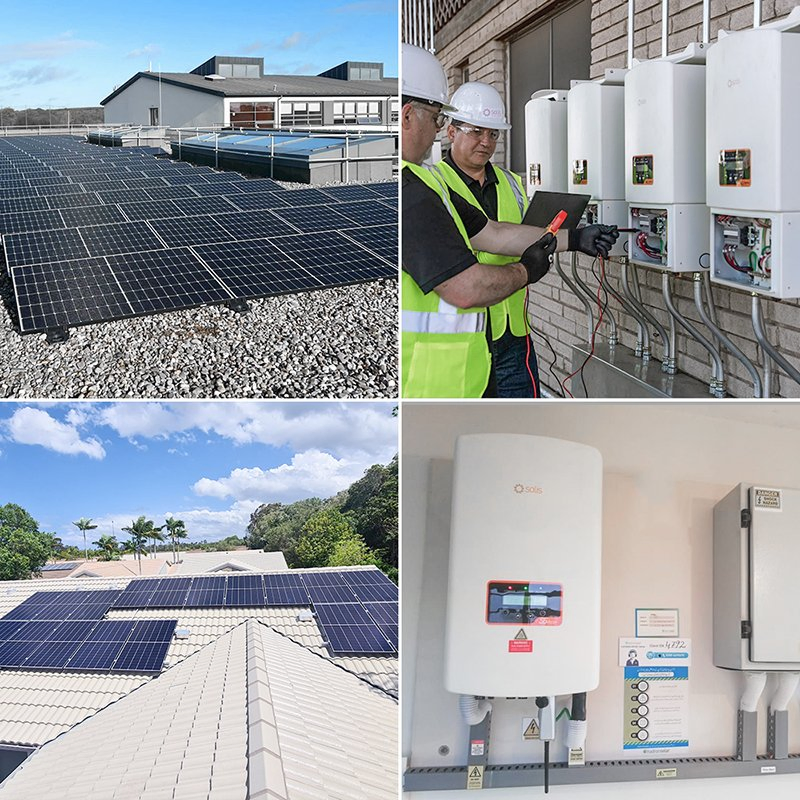

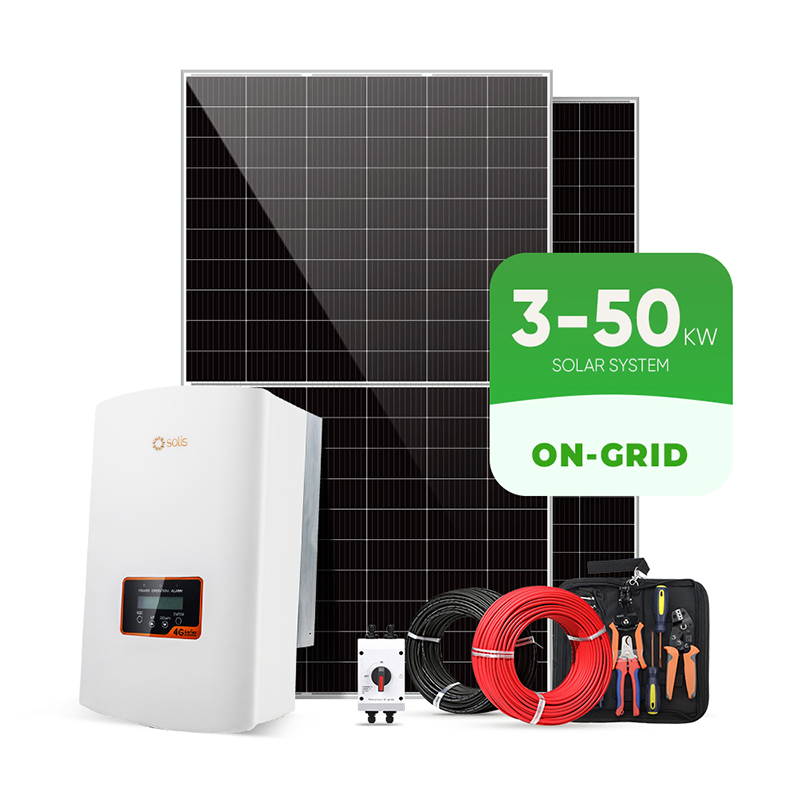

on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
1 / 5
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System
on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System

on Grid 20000 Watt Solar Energy System 10kw 20000W 20 kVA 20 Kw Home Solar Power System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

General Specifications

Model NO.
LF3-50KW ON
Condition
New
Certification
ISO, CB, CE
Application
Home
Inverter Type
On-Grid Inverter
Solar Panel
Monocrystalline Silicon
Load Power
3kW - 50kW
Output Voltage
380-415V
Output Frequency
50/60Hz
Mounting Type
Roof/Ground Mounting
P

Product Description

On Grid Solar Energy System 10kW - 50kW Solutions

This high-efficiency on-grid solar power system is designed for residential and commercial applications, converting solar energy into electricity to reduce utility bills and promote sustainable living.

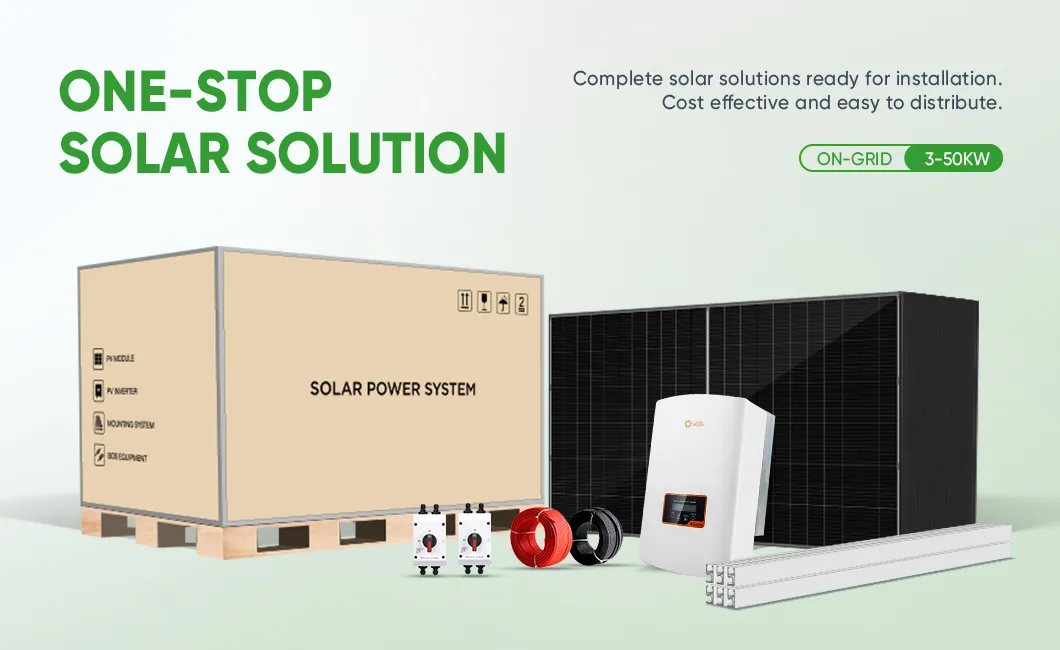

Solar Energy System

Warranty & Operation

Warranty Information

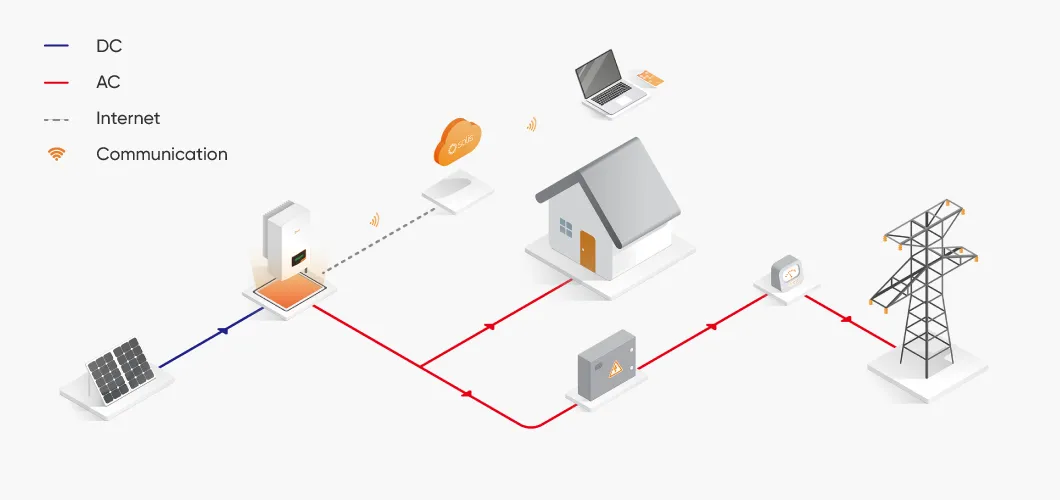

System Workflow

How it works
C

System Configuration

Model LF-3KW-ON LF-5KW-ON LF-10KW-ON
Half Cut Mono 550W Panel 6 Pieces 10 Pieces 21 Pieces
DC Disconnect Switch 1 Piece 2 Pieces 3 Pieces
Inverter Model S6-GR1P3K S6-GR1P5K Solis-1P10K-4G
DC Cable 4mm2 100 meters 200 meters 400 meters
Model LF-20KW-ON LF-30KW-ON LF-50KW-ON
Half Cut Mono 550W Panel 40 Pieces 60 Pieces 105 Pieces
Inverter Configuration Solis-3P20K-4G Solis-3P15K (2 Pcs) Solis-1P10K (5 Pcs)
DC Cable 4mm2 600 meters 800 meters 1000 meters
MC4 Connector 20 Pairs 30 Pairs 50 Pairs
M

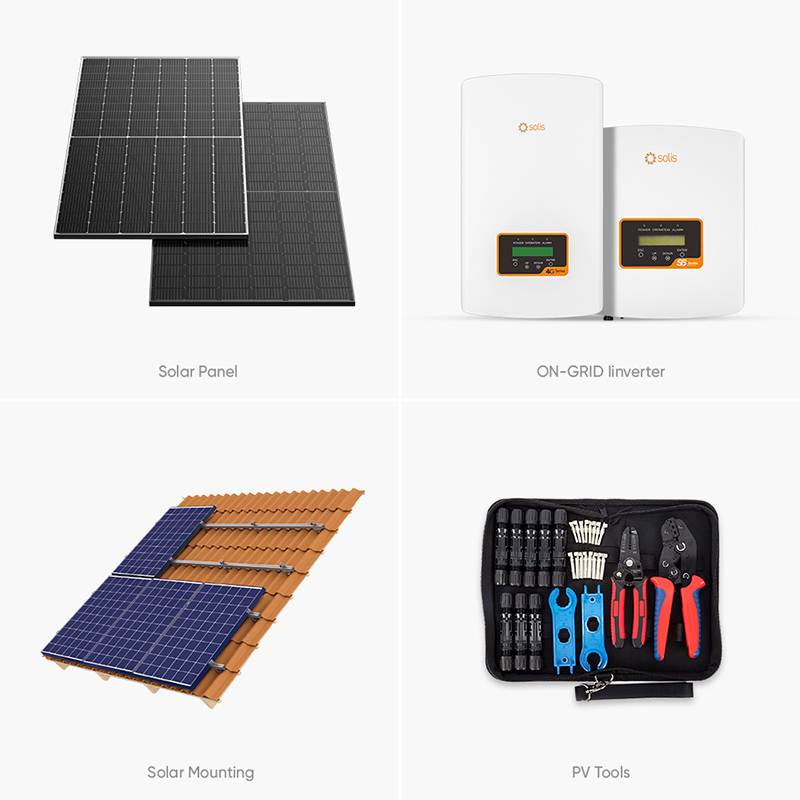

Core Components

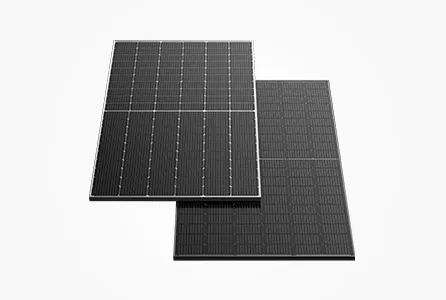

Solar Panel
Half Cut Mono 560W Solar Panel Peak Power: 560W | Max Voltage: 42.06V | Max Current: 12.84A | Size: 2279x1134x35mm

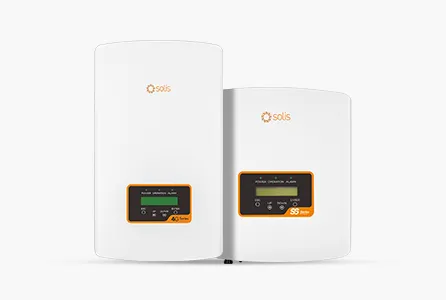

Solar Inverter
On Grid Solar Inverter Max efficiency 99%, compatible with bifacial modules, remote firmware upgrades, and low failure rate technology.

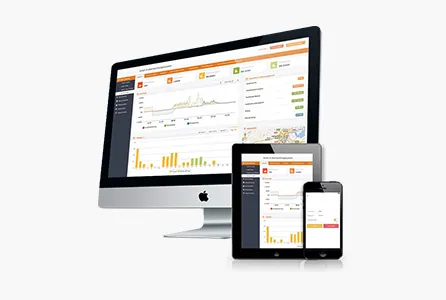

Monitoring System
Monitoring System Smart I-V curve scanning, health reports, and multi-device seamless connection (Inverters, weather stations, etc.).

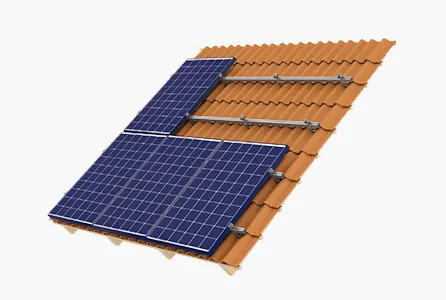

Mounting System
PV Mounting System High-grade AI6005 & SUS304 components. Options for Asphalt Shingle, Tile, or Ground installation.
G

Accessories & Tools

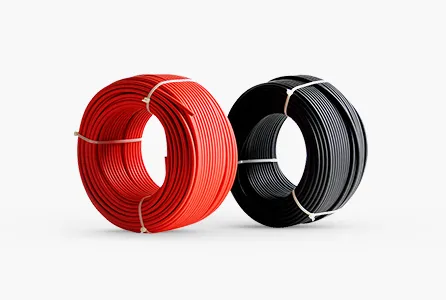

DC Cable

DC Cable & MC4

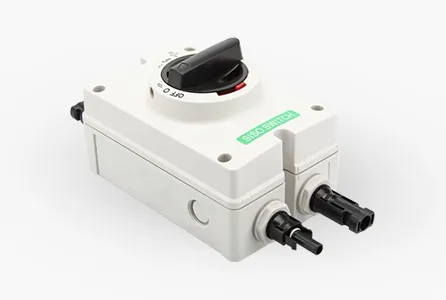

Disconnect Switch

IP66 Disconnect Switch

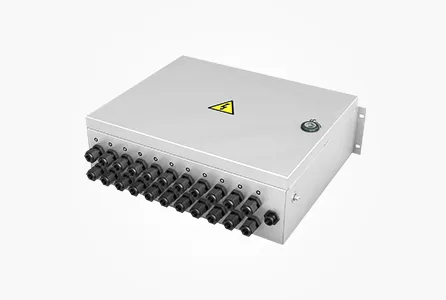

Combiner Box

PV Combiner Box

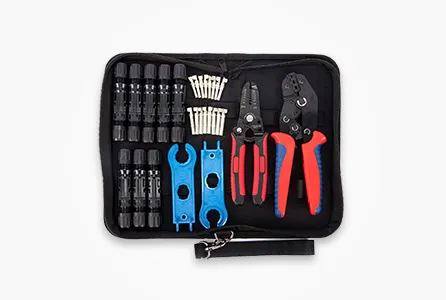

Installation Tools

Professional PV Tools

V

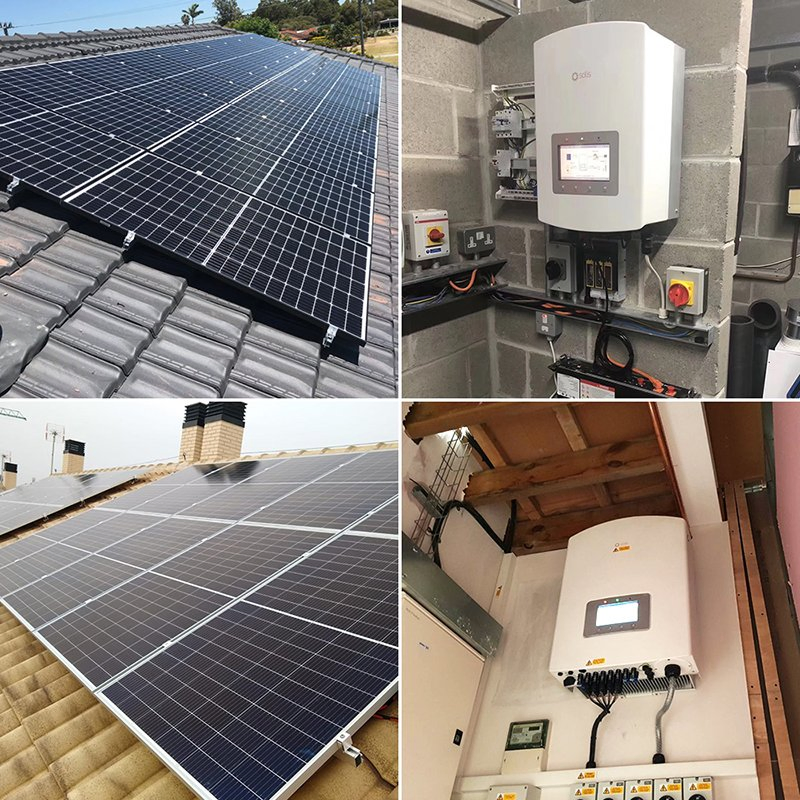

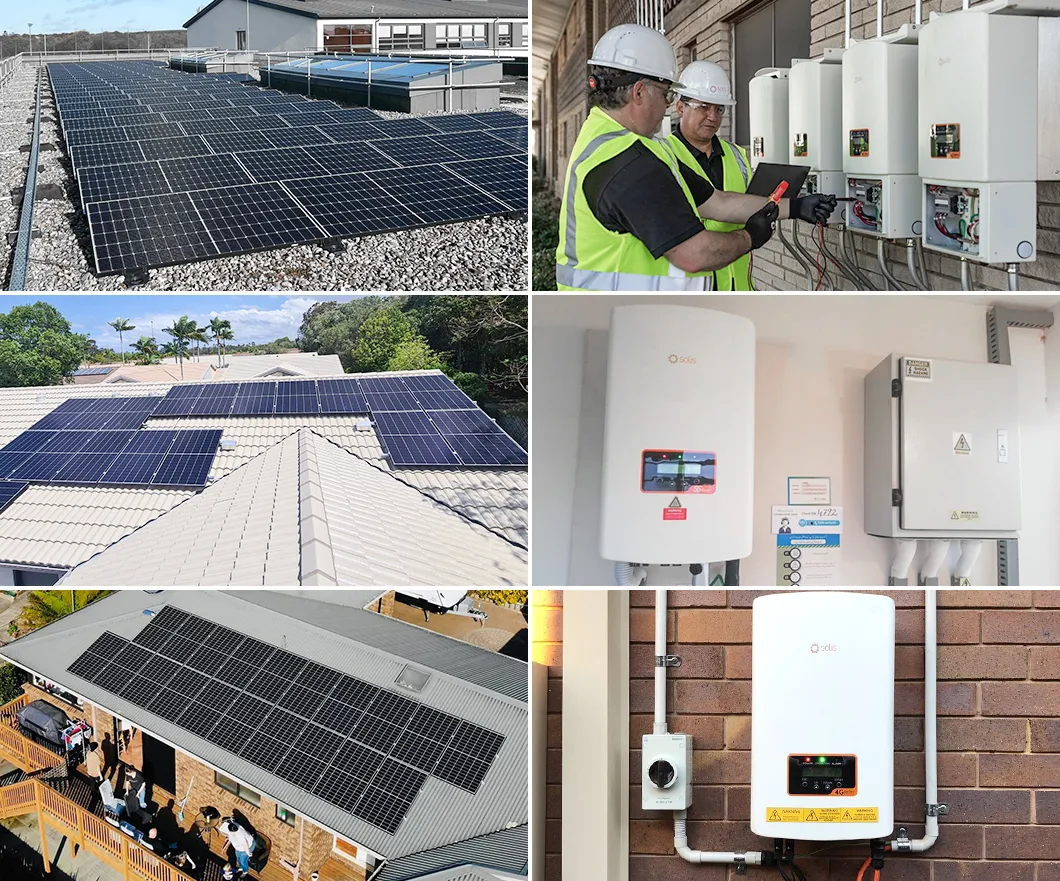

Project Showcase

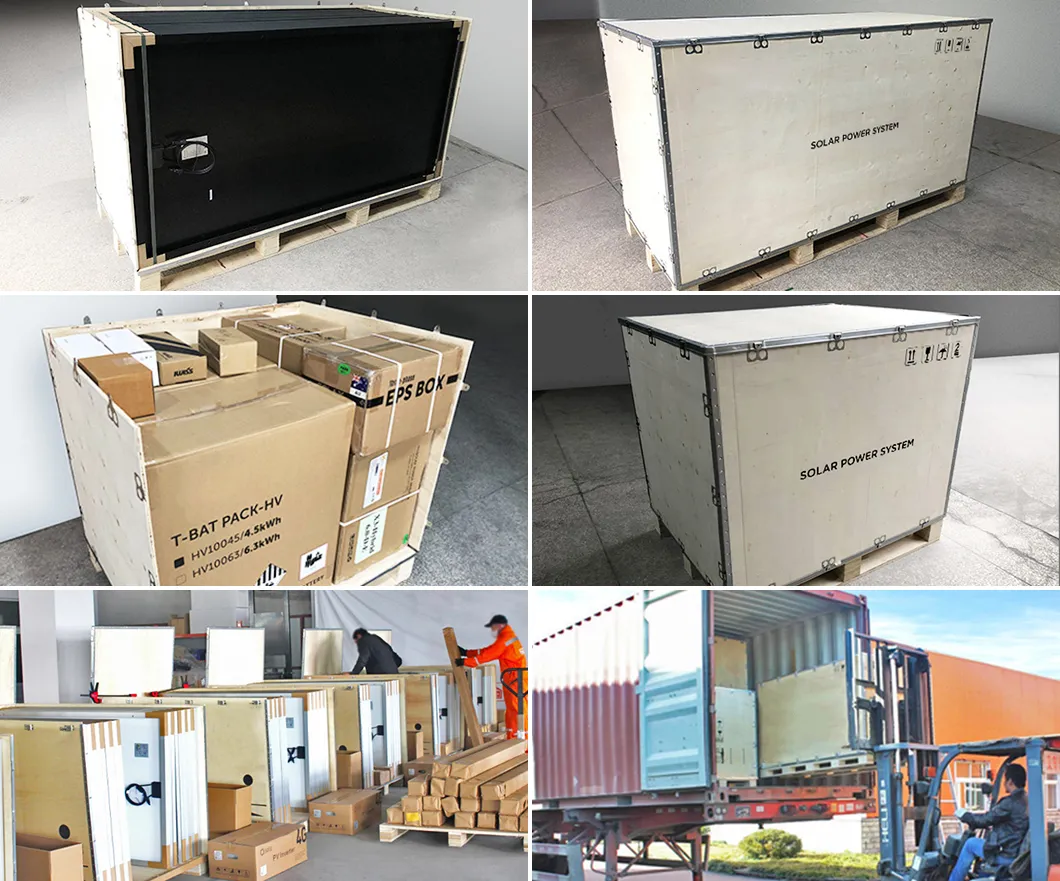

Case Study 1 Case Study 2

Frequently Asked Questions

What is an on-grid solar system?
An on-grid system is connected to the local utility grid. It sends excess power generated by the solar panels back to the grid and allows you to pull electricity from the grid when needed.
Do I need batteries for this system?
No, on-grid systems typically do not require batteries as the utility grid acts as your storage. This makes the system more affordable and easier to maintain.
Can the system be customized for my roof type?
Yes, we provide customized mounting systems for various roof types including asphalt shingles, tiles, and flat roofs, as well as ground-mounted options.
How can I monitor the performance of my solar system?
The system includes a smart monitoring gateway that provides real-time data on energy production and system health via a web portal or mobile app.
What is the lifespan of the solar panels?
The Monocrystalline Silicon panels are designed for long-term durability, typically offering a performance lifetime of over 25 years.
Is the system compatible with high-voltage appliances?
Yes, the system supports output voltages of 380-415V, making it suitable for both standard home appliances and heavier industrial equipment.

Related Products

at Home Automatic All-in-One Aircraft Engine Controls Design System Analysis and Ai Based Health Apnea Monitoring System

at Home Automatic All-in-One Aircraft Engine Controls Design System Analysis and Ai Based Health Apnea Monitoring System
Smart Glucose Monitoring System Accurate Diabetes Management Kit with Test Strips for Home Health

Smart Glucose Monitoring System Accurate Diabetes Management Kit with Test Strips for Home Health

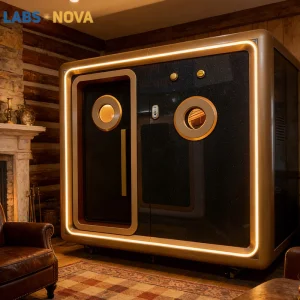

Smart Technology Hyperbaric Oxygen Chamber with 1.5-2.0 ATA Pressure Featuring Ai Health Monitoring and Automated Reporting Systems

Smart Technology Hyperbaric Oxygen Chamber with 1.5-2.0 ATA Pressure Featuring Ai Health Monitoring and Automated Reporting Systems

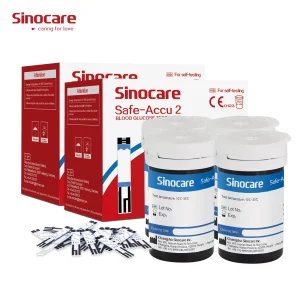

Sinocare Blood Glucose Meter Blood Glucose Meter Monitoring System with Test Strips for Home Hospital

Sinocare Blood Glucose Meter Blood Glucose Meter Monitoring System with Test Strips for Home Hospital
Automotive Active Contactless Heart Rate Blood Glucose Blood Pressure Apena Health Monitoring System with Breath Sensors

Automotive Active Contactless Heart Rate Blood Glucose Blood Pressure Apena Health Monitoring System with Breath Sensors

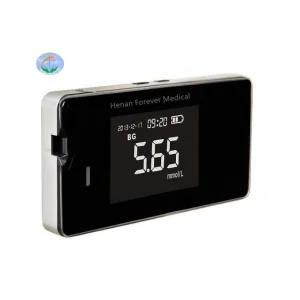

4 in 1 Multi-Monitoring Blood Glucose Monitoring System Ua Bg Test

4 in 1 Multi-Monitoring Blood Glucose Monitoring System Ua Bg Test

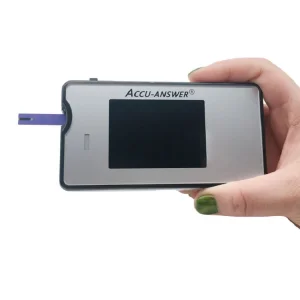

Home Hospital Use Diabetic Test Strips Blood Glucose Monitoring System

Home Hospital Use Diabetic Test Strips Blood Glucose Monitoring System

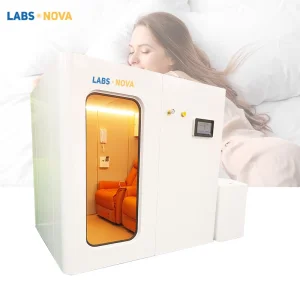

Intensive Care Unit Hyperbaric Oxygen Chamber with 3.0 ATA Pressure for Severe Carbon Monoxide Poisoning Emergencies Featuring Advanced Monitoring Systems

Intensive Care Unit Hyperbaric Oxygen Chamber with 3.0 ATA Pressure for Severe Carbon Monoxide Poisoning Emergencies Featuring Advanced Monitoring Systems

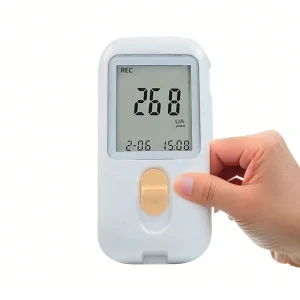

Blood Glucose and Uric Acid Monitoring System with Advanced Electrochemical Biosensor Accurate Blood Glucose Uric Acid Meter

Blood Glucose and Uric Acid Monitoring System with Advanced Electrochemical Biosensor Accurate Blood Glucose Uric Acid Meter

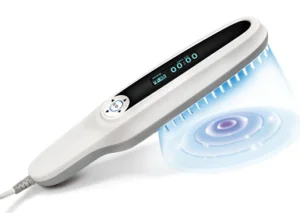

Home Health Care UV Radiation Treatment System/UV Radiation Theropy
