Basic Information
Group
Infants and Young Children
Test Principle
Electrochemical Biosensor
Voltage
110V~240V, 50Hz~60Hz
Test Time
5 Seconds per Test
Production Capacity
3000 Pieces/Month
Product Description

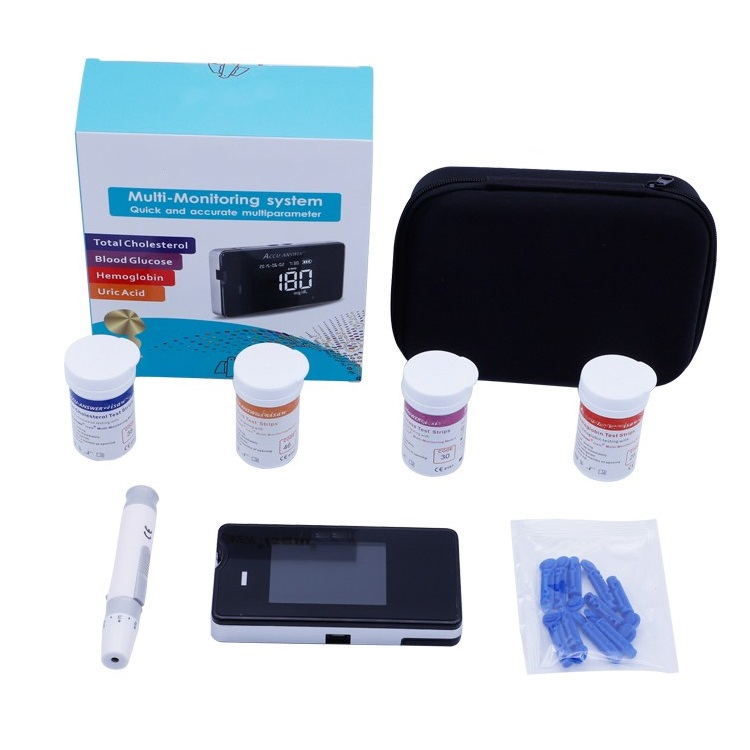

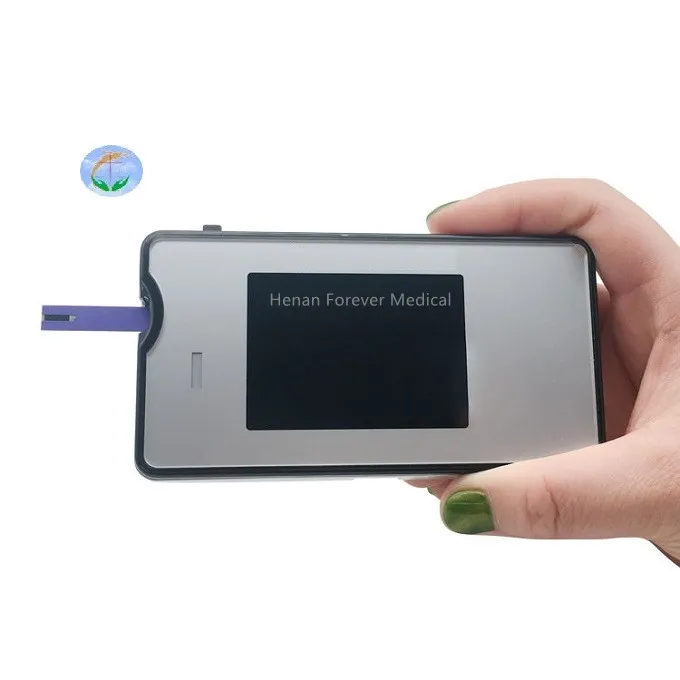

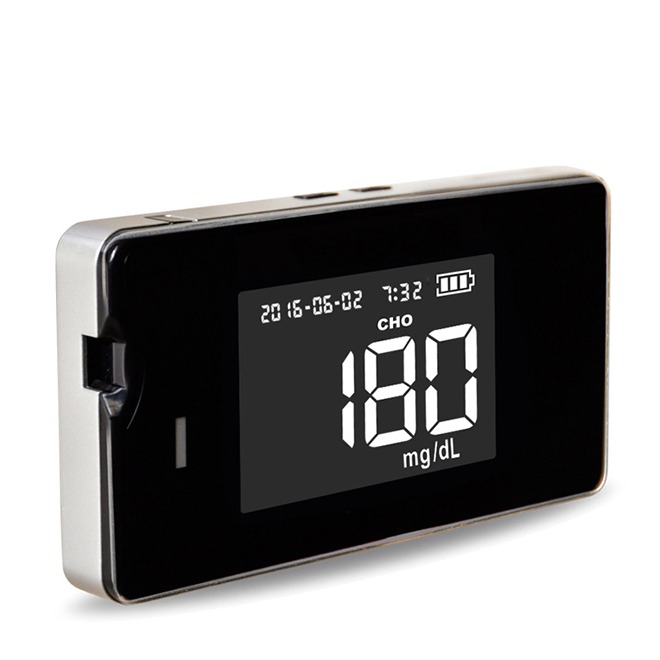

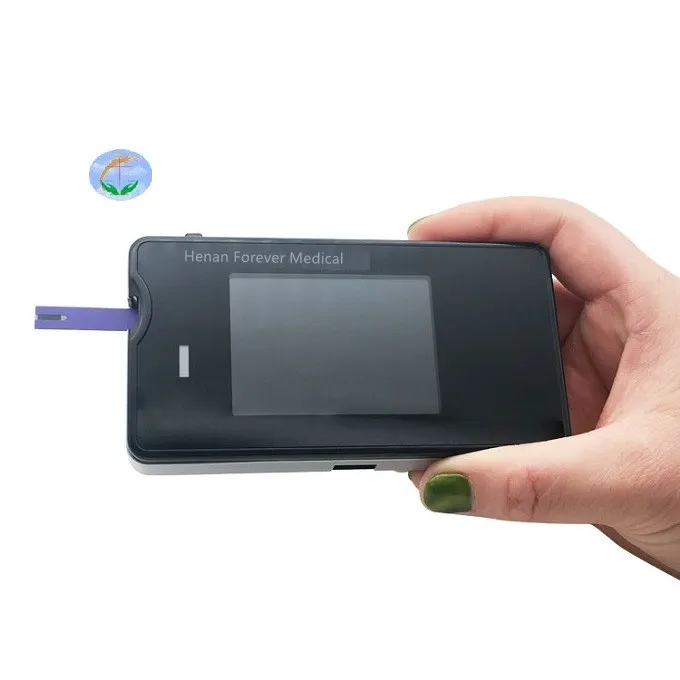

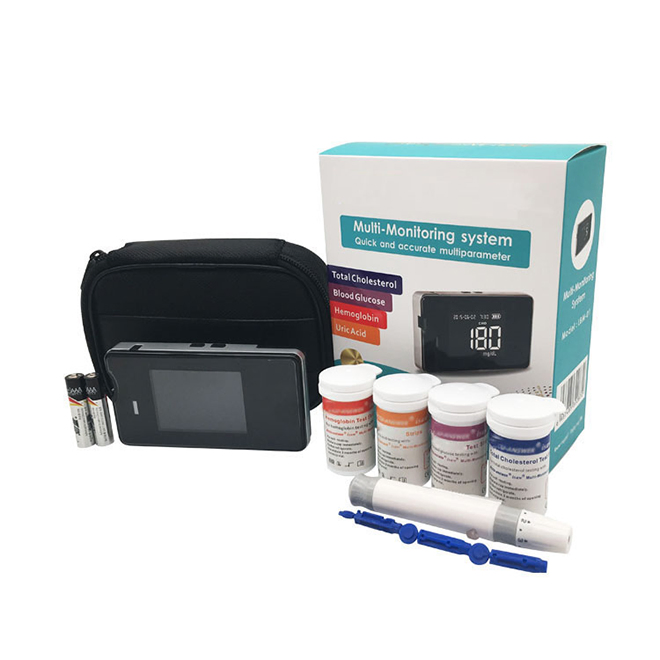

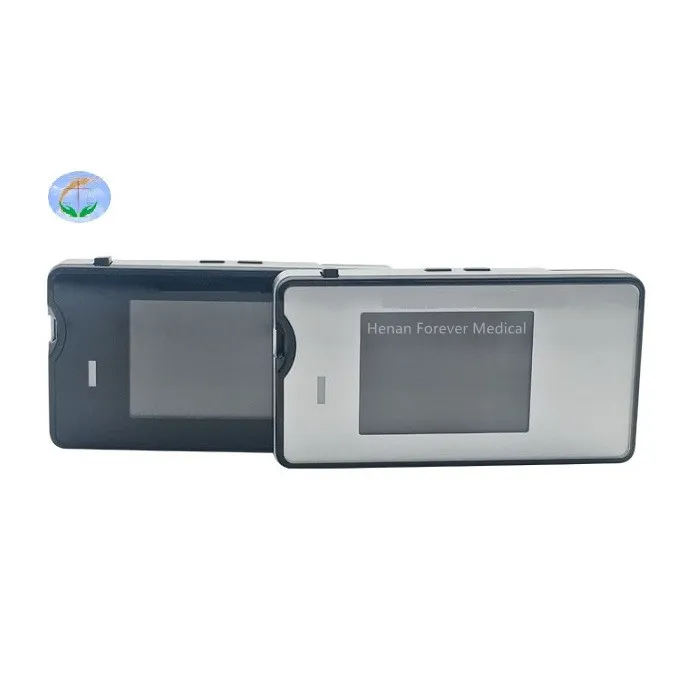

Portable blood analyzer Multi parameters glucose hemoglobin meter Uric Acid analyzer
The self-testing Monitoring System is designed for in vitro diagnostic use only (external use only). The system is for healthcare professionals and people with diabetes, anemia, hypercholesterolemia or hyperuricemia to measure glucose, hemoglobin, total cholesterol and uric acid values in fresh capillary whole blood from finger stick quantitatively.
- Rapid Results: Results in 5 seconds for glucose, hemoglobin, and uric acid; 15 seconds for total cholesterol.
- Sample Type: Compatible with fresh capillary whole blood and venous whole blood.
- Data Memory: Stores up to 400 results with date and time for easy tracking.

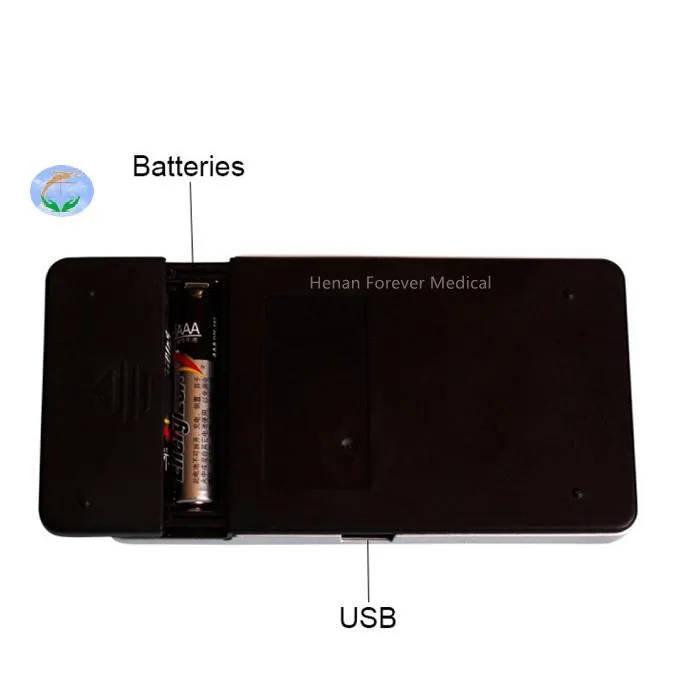

- Power Versatility: Powered by DC3V (2 AAA Batteries) or via USB connection.
Technical Specifications
| Feature |
Specification Details |
| Measurement Range |
Glucose: 20-600 mg/dL
Uric Acid: 1.5-20 mg/dL
Hemoglobin: 5.0-26 g/dL
Total Cholesterol: 103-413 mg/dL
|
| Response Time |
5 Seconds (Glucose, Uric Acid, Hemoglobin) / 15 Seconds (Cholesterol) |
| Sample Volume |
Glucose/Hemoglobin/Uric Acid: ~0.5uL; Total Cholesterol: ~5uL |
| Operating Environment |
Temperature: 10-40ºC; Humidity: 10-90% |
| Unit Options |
mmol/L, mg/dL, μmol/L, g/dL |
| Dimensions & Weight |
111*59*16mm; 110g (without battery) |
| Automatic Power Off |
Approx. 3 minutes after last action |
Frequently Asked Questions
Q: What specific health parameters can this device monitor?

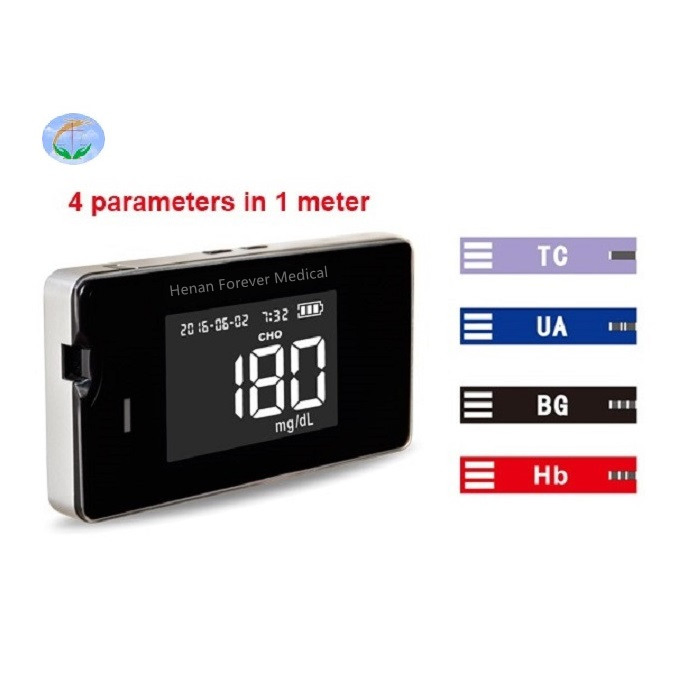

A: This 4-in-1 system monitors Blood Glucose, Total Cholesterol, Uric Acid, and Hemoglobin levels using a single device.
Q: How much blood is required for each test?
A: Glucose, Hemoglobin, and Uric Acid tests require only a tiny 0.5uL sample. Total Cholesterol requires a slightly larger sample of approximately 5uL.
Q: How long does the device take to show results?
A: Results for Glucose, Uric Acid, and Hemoglobin are displayed within 5 seconds. Total Cholesterol results are available in 15 seconds.
Q: Can the device store historical data for clinical tracking?
A: Yes, the device features a memory capacity of 400 results, including the specific date and time for each measurement.
Q: What are the power options for this portable analyzer?
A: It is highly versatile, operating on either 2 AAA batteries (providing roughly 1000 tests) or via a USB power supply.
Q: Is it suitable for professional healthcare use?
A: Yes, it is designed for both individual self-testing and for healthcare professionals to manage patients with diabetes, anemia, or hypercholesterolemia.
