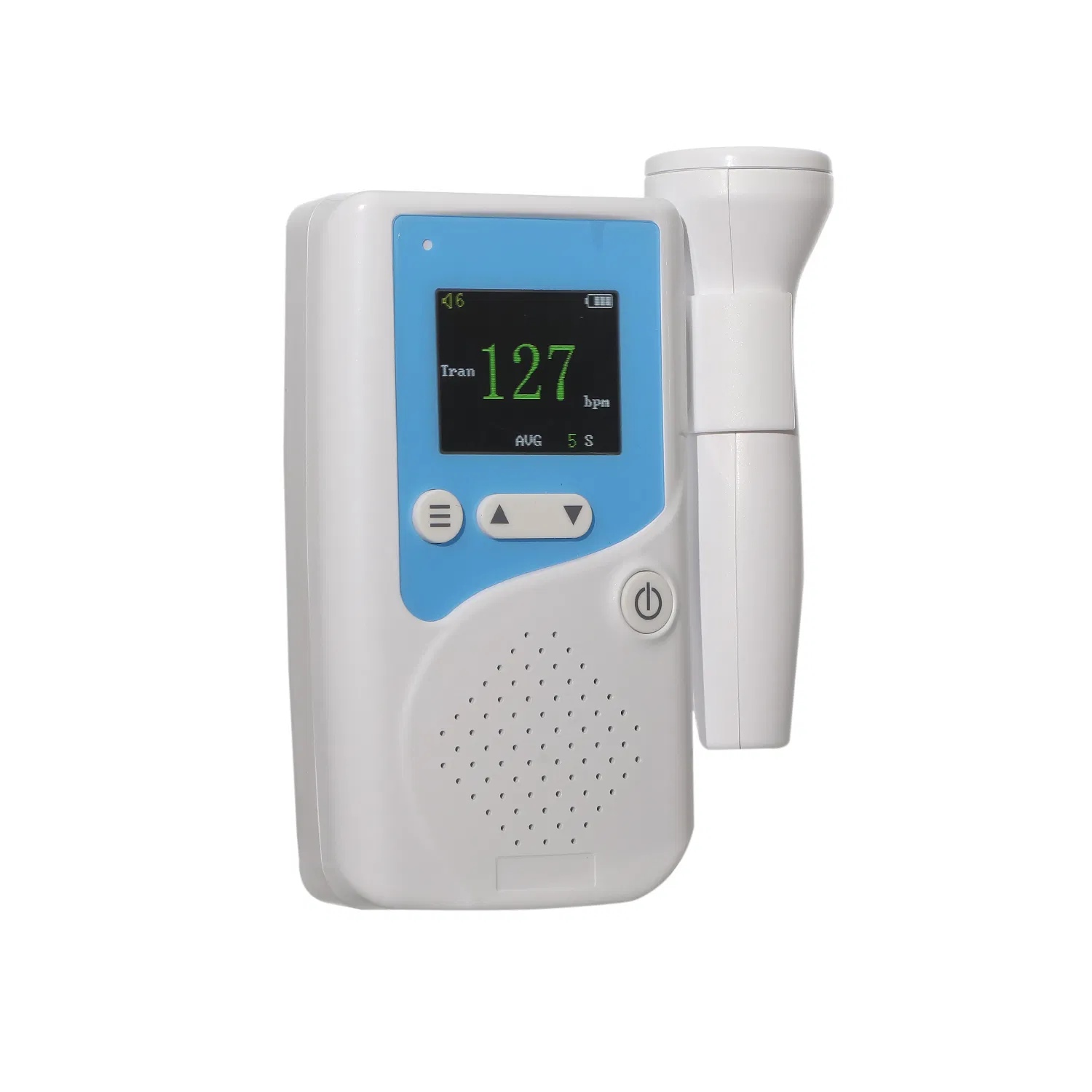

Two Color Fetal Doppler Blue and Pink

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Fetal Doppler

Send Inquiry

Product Description

Basic Info.

Model NO. FD-01

Certification ISO13485

Group Female

Transport Package Carton

Product Description

Applicable to detect fetal heartrate from the twelfth week

Built in loud speaker with connection to recorder and earphone

Big LCD of 3x23cm with backlight

Two operation mode of realtime FHR and average FHR

Compatible with AA alkaline battery or AA rechargeable Ni-MH battery

Automatic power off in 1 minute without any operation

Sound alarm for FHR beyond normal range and lower battery capacity

Indication of volume, battery capacity, FHR dynamic graph

Water proof interchangeable probe of 2.5MHZ

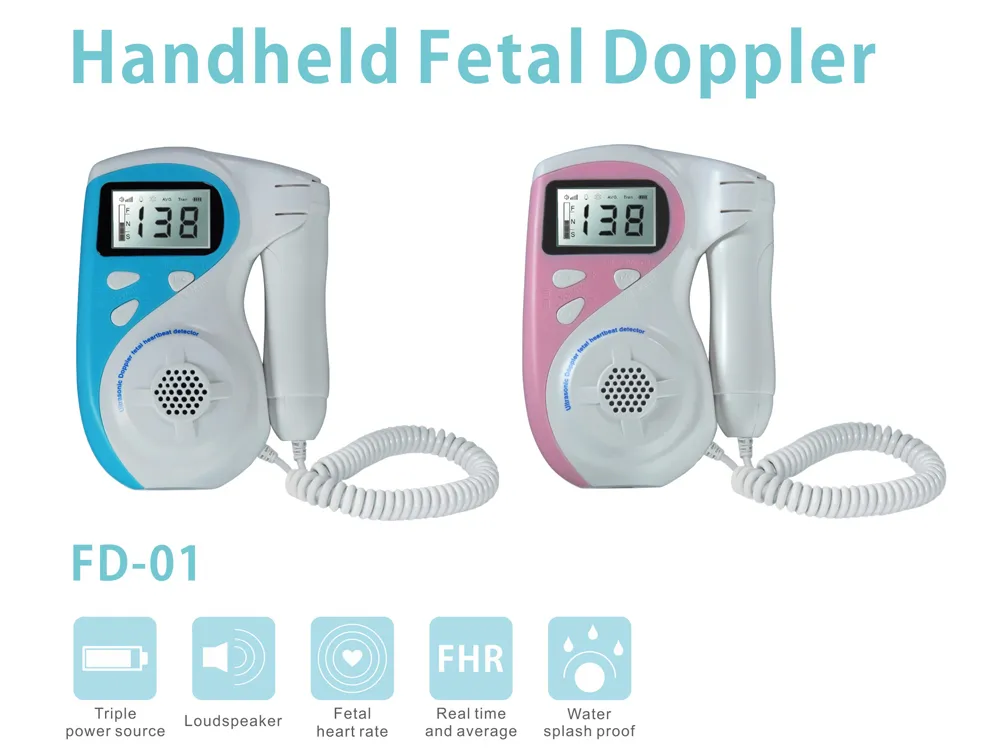

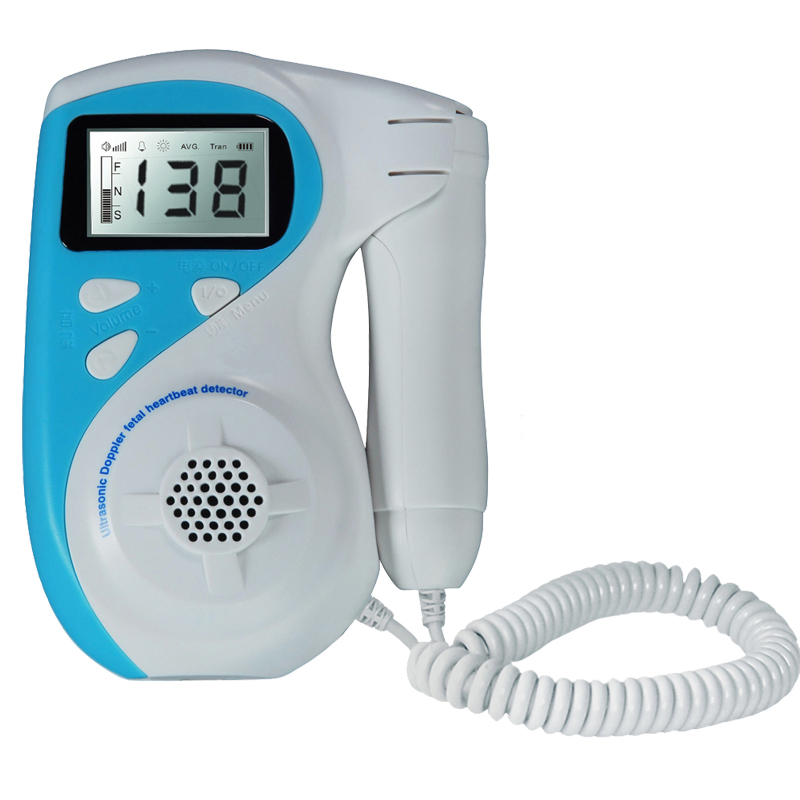

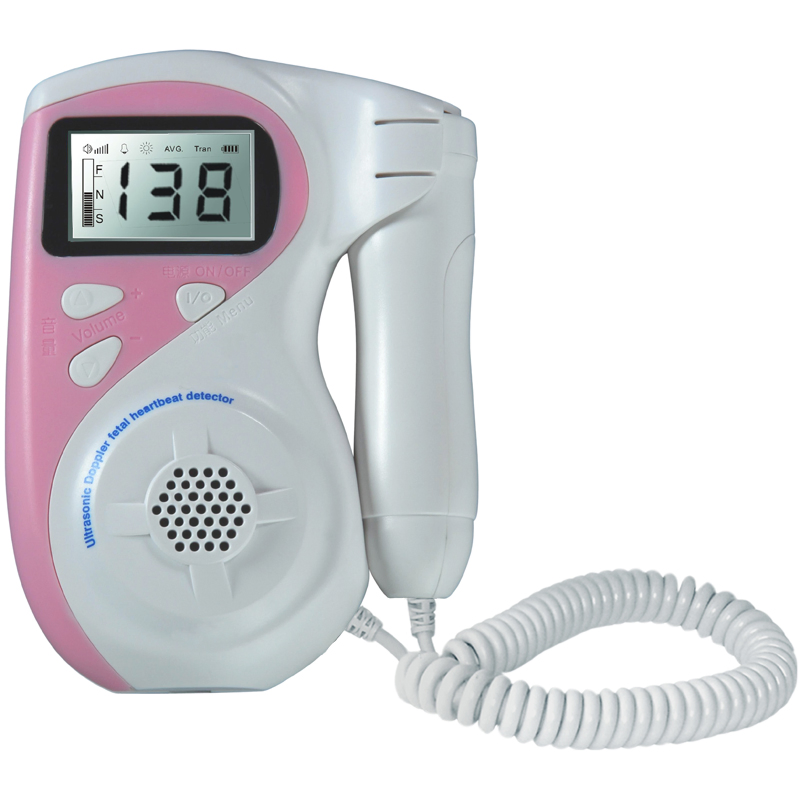

Two color for choice: blue and pink

8 hours of continuous operation

Product Parameters

DISPLAY LCD

Size: 37mm x 23mm

ULTRASOUND

Ultrasound Emitting Frequency	2.5MHz
Ultrasound Emitting Power	<10mW/cm²
Overall sensitivity (distance 200mm)	≥90dB
Spatial-peak temporal-peak acoustic pressure	<8.6kPa
Output power	<26mW
Effective area of ultrasonic transducer	1.57cm² ± 20%
Acoustic coupling medium (normal use)	ph: 5.5-8

FHR PERFORMANCE

Automatic FHR test range	50~210BPM
Heart rate alarms	<100, or >160BPM
Resolution / Accuracy	1BPM
Audio output power	1W
Audio out socket	Ø3.5mm

POWER SUPPLY

Rechargeable Battery	3.6V / 9V / 3XAA Nickel metal hydrogen
Battery life	2.5 years or 300 cycles
AC Input	230V, AC, 50Hz, <20VA
AC Output	12V, DC, 300mA

Visual Display

FAQ

1. When is the best time to start using this Fetal Doppler? It is applicable to detect the fetal heart rate starting from the 12th week of pregnancy.

2. Does the device come with a built-in speaker? Yes, it features a built-in loud speaker. It also includes a connection for external recorders or earphones.

3. What kind of batteries are required? The device is compatible with standard AA alkaline batteries or AA rechargeable Ni-MH batteries.

4. How does the alarm system work? The device provides a sound alarm if the FHR goes beyond the normal range or if the battery capacity is low.

5. Is the probe waterproof? Yes, it comes with a 2.5MHz water-proof interchangeable probe designed for durability and ease of use.

6. How long can the device operate on a full charge/new batteries? The device is capable of providing up to 8 hours of continuous operation.
