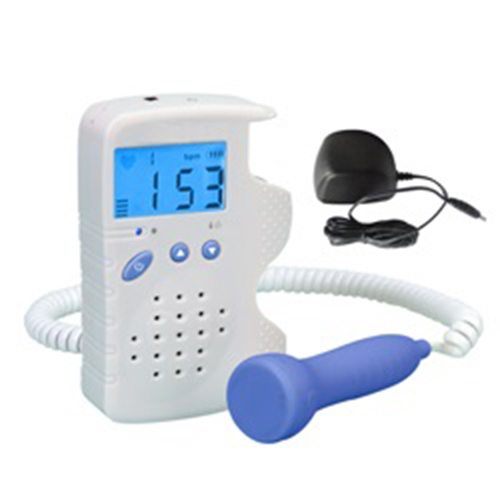

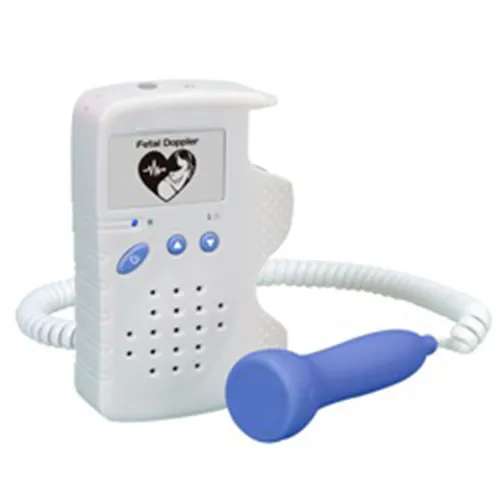

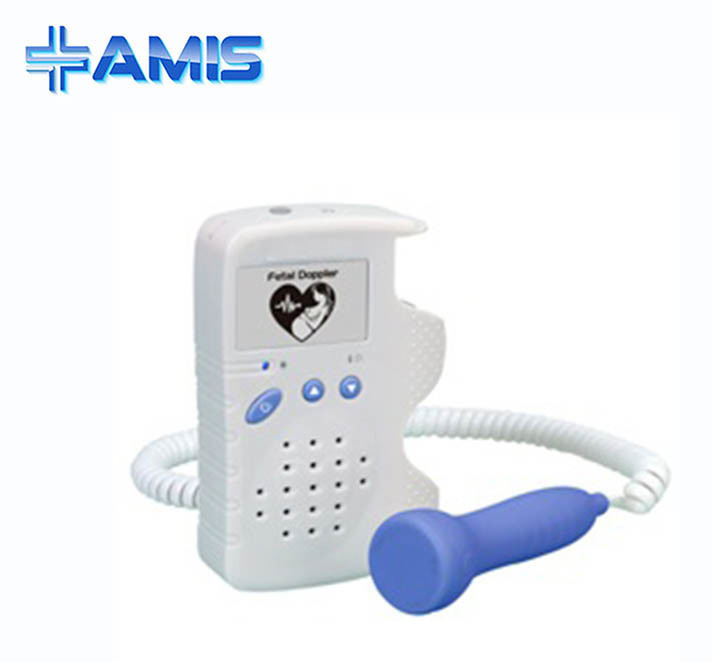

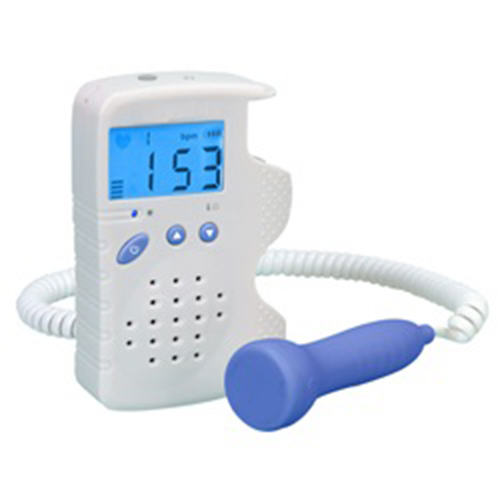

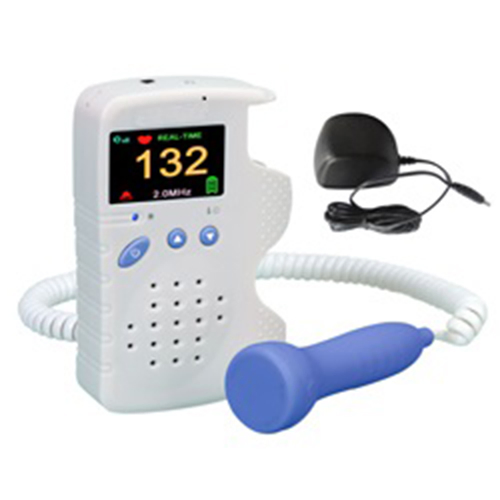

Diagnosis Equipment Fetal Doppler (AM-FD200A)

1 / 5

Diagnosis Equipment Fetal Doppler (AM-FD200A)

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📋

Basic Information

Model NO.

AM-FD200A

Certification

CE, ISO13485

Group

Infants and Young Children

Display

Transport Package

Carton

Specification

220mm x 220mm x 140mm

Origin

China

HS Code

90181930

Capacity

5000sets/Year

🔍

Product Overview

Fetal Doppler Diagnosis Equipment (AM-FD200A)

Intended Usage

FD-200A ultrasonic fetal doppler meets the fetus daily check and routine examination at home, clinic, community and hospital.

Key Features

Easy and convenient operation
High-fidelity, crystal clear sound
Earphone and speaker are feasible
High sensitivity doppler probe
Low ultrasound dosage
Unique ergonomic design

⚙️

Technical Specification

Ultrasound frequency

2MHz

Ultrasound intensity

<10mW/cm2

Power supply

Alkalinity battery

FHR Range

50~240bpm

FHR resolution

1bpm

FHR accuracy

± 1bpm

Consumption

<1W

Weight

500g

📊

Model Comparison

Functions	FD-200A	FD-200D	FD-200C	FD-200B	FD-200G
Doppler type	Continuous	Continuous	Continuous	Continuous	Continuous
Display	No	B/W	Colour	B/W	Colour
Backlight	No	Yes	Yes	Yes	Yes
Build-in speaker	Yes	Yes	Yes	Yes	Yes
Display modes	No	No	Yes	No	Yes
Volume adjust	Yes	Yes	Yes	Yes	Yes
Battery indicator	No	Yes	Yes	Yes	Yes
FHR display	No	Yes	Yes	Yes	Yes
FHR curve	No	No	Yes	No	Yes
Auto power off	No	Yes	Yes	Yes	Yes
Work modes	No	Yes	Yes	Yes	Yes
Alkalinity battery	Yes	No	No	Yes	Yes

Configuration & Options

Standard: Main body, Alkalinity battery, 2MHz probe

Options: Carry bag, 3MHz probe, Earphone

Frequently Asked Questions

1. What is the primary use of the AM-FD200A Fetal Doppler?

The FD-200A is designed for daily fetal heart rate checks and routine examinations in homes, clinics, and hospitals.

2. Does this model have a visual heart rate display?

No, the AM-FD200A model focuses on high-fidelity audio output and does not include a display screen. For visual display, models like FD-200D or FD-200C are recommended.

3. Can I use headphones with this device?

Yes, the device supports both the built-in speaker and earphone output for private listening.

4. What type of batteries does it use?

The AM-FD200A standard configuration uses alkalinity batteries for convenient power replacement.

5. Is the ultrasound dosage safe for daily use?

Yes, it features a low ultrasound dosage design (intensity <10mW/cm2), making it suitable for routine checks as per medical standards.

6. Are there different probe options available?

The standard package includes a 2MHz probe, but a 3MHz probe is available as an optional accessory.
