Basic Specifications
Display
7" Color TFT Screen
Function
Fetal Heart Rate Measuring
Product Description

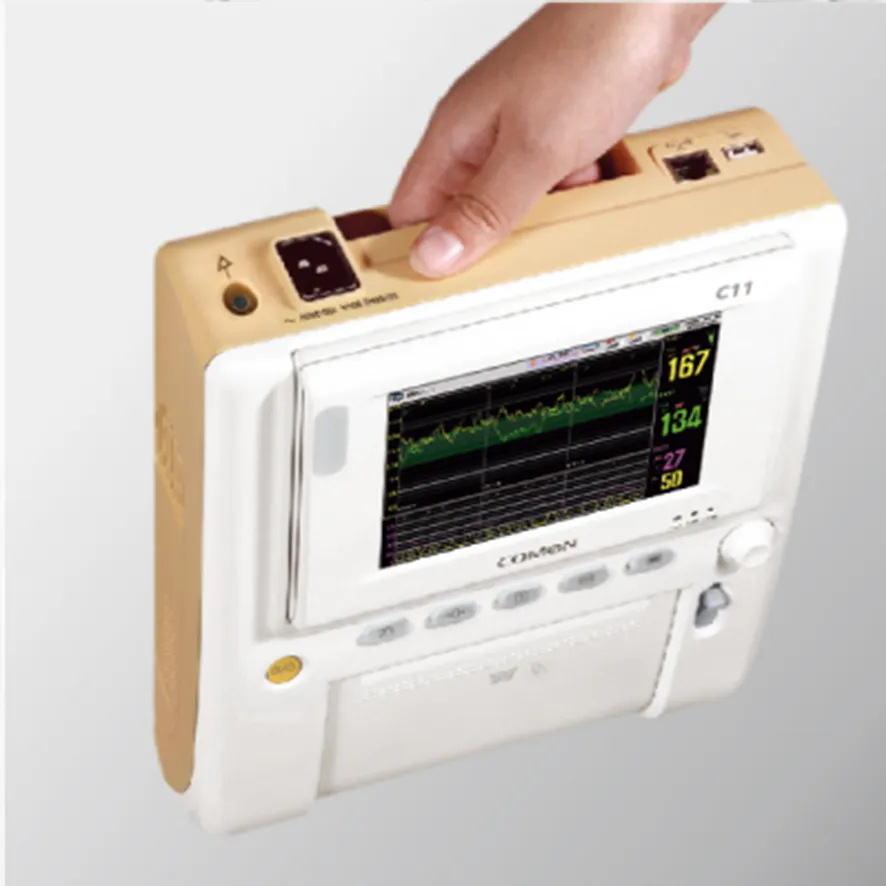

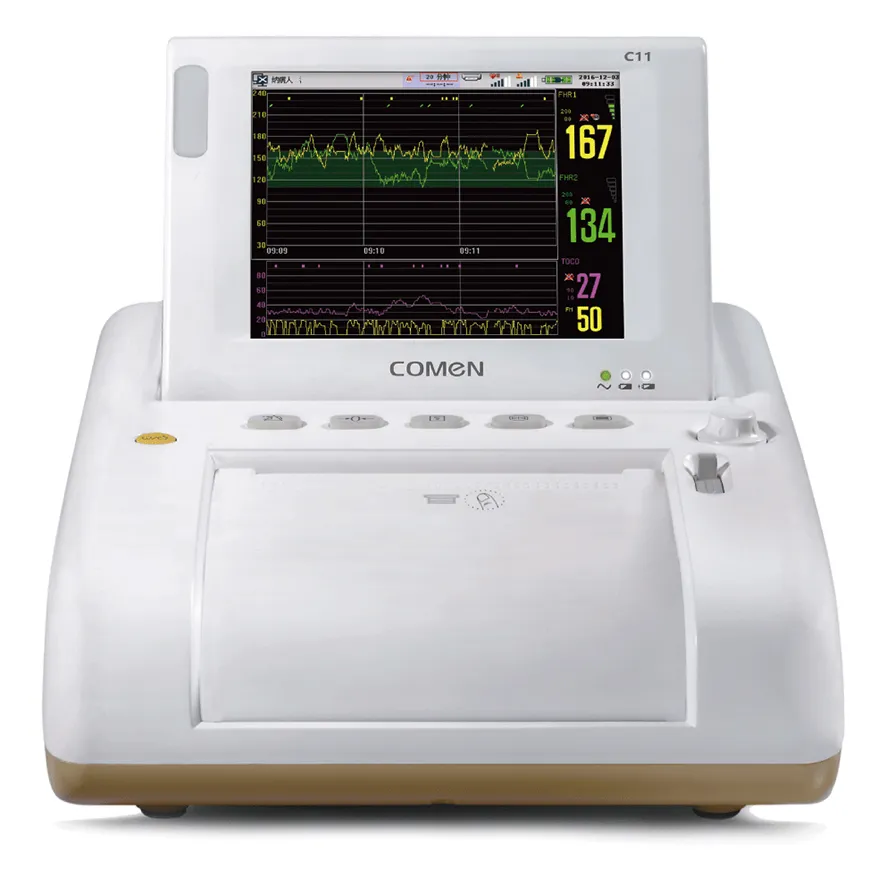

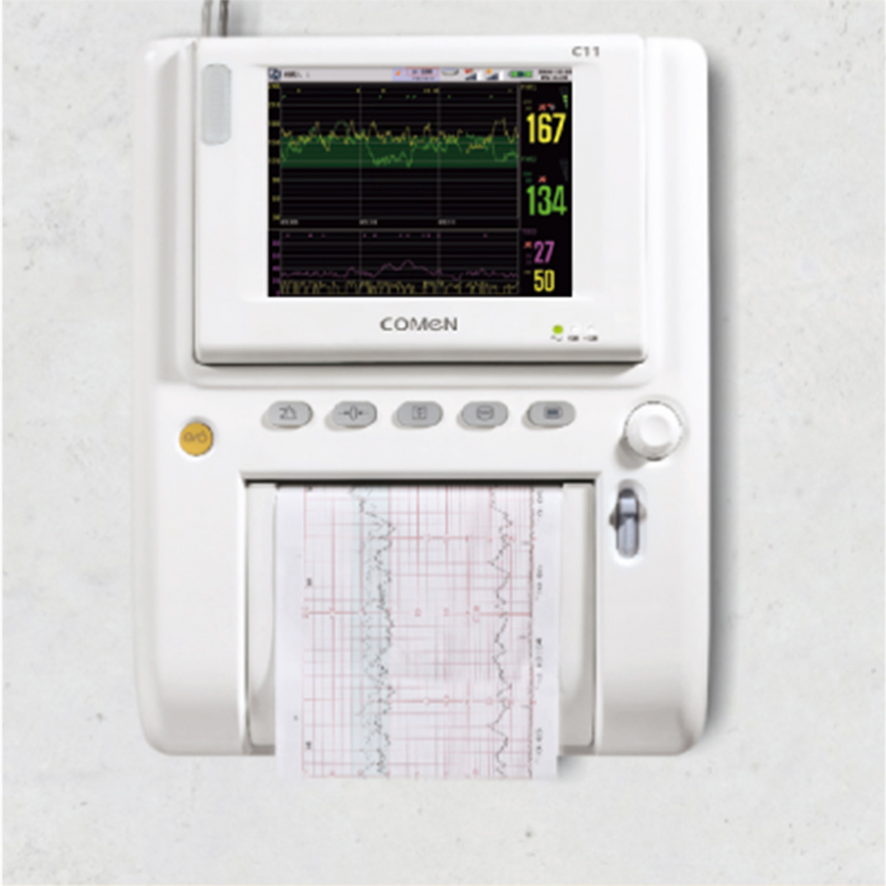

C11 Hospital Fetal Monitor Medical Digital CTG Machine
✓Compact and lightweight design for portable use

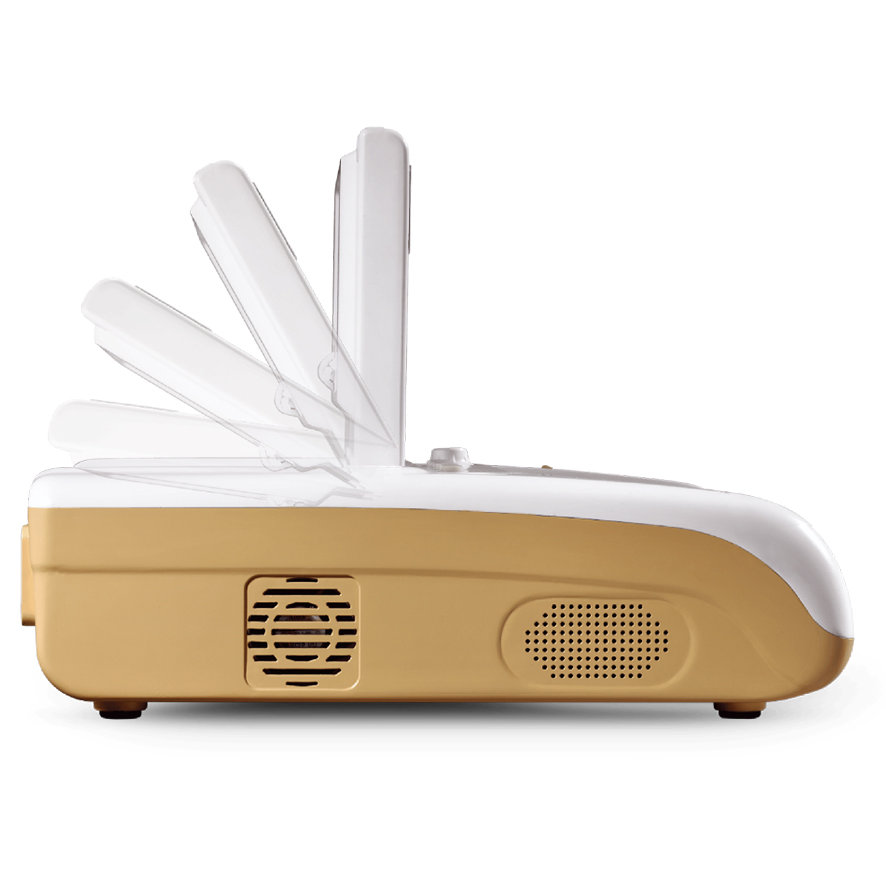

✓7" color TFT screen, folding 90 degrees

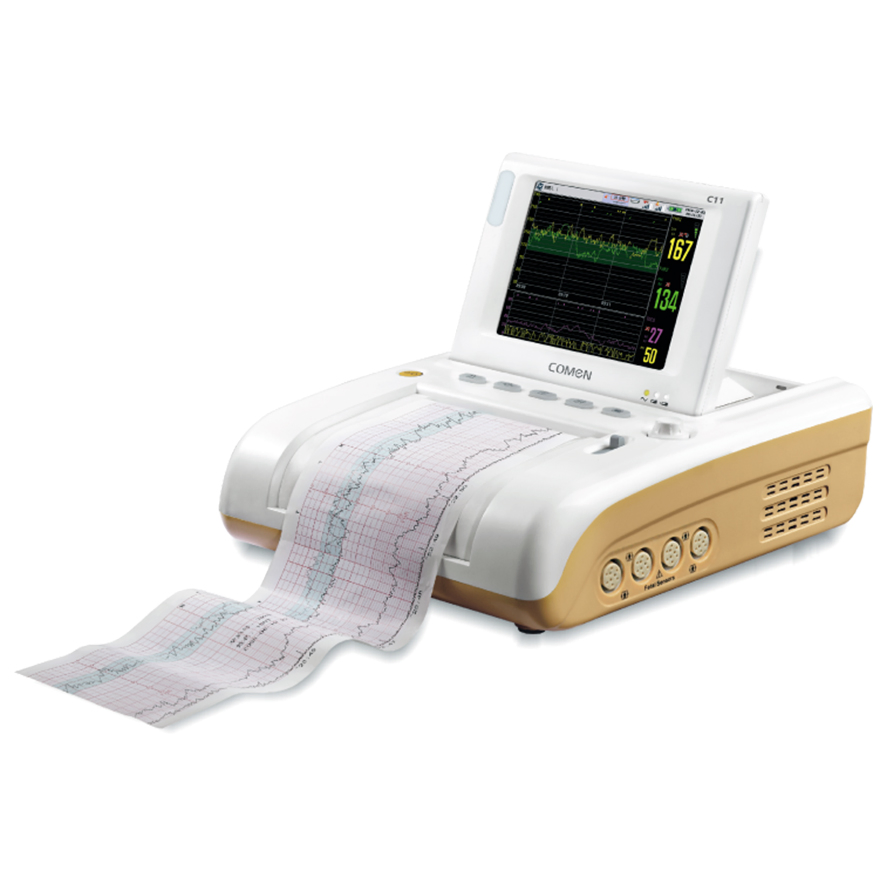

✓Built-in high dot matrix thermal printer with long life
✓Standard patient event marker and clinical event marking button
✓Auto fetal movement detection available
✓High sensitivity ultrasound transducer, low power consumption
✓More than 12 hours data storage for recall and printing
Technical Specifications
Fetal Heart Rate: Multi-crystal, pulsed doppler, high sensitivity
Transducer Strength: <5mW/cm2
Working Frequency: 1.0MHz
Signal Processing: Special DSP system and mode recognition
Measurement Range: 50~210 bpm
Alarm Range: High: 160-190 bpm | Low: 90-120 bpm
TOCO Measurement Range: 0~100 units
Power Supply: AC 220V±20%, 50Hz or 8.4V Li-battery
Dimensions: 295W × 240D × 73H mm
Net Weight: 1.75kg
Standard Configuration: FHR, TOCO, FM
Service Excellence
★Top Quality: Strict quality control system for market reliability.
★Excellent Service: Dedicated support for long-term business relationships.
★OEM Accepted: Custom logo printing available on products.
★Unbeatable Price: Ensuring high performance-to-price ratios.
★Timely Delivery: Efficient shipping once orders are processed.
★After-Sale Support: Standard one-year warranty on all products.
Frequently Asked Questions
How to purchase your products?
You can purchase directly from us. The standard procedure involves signing a contract, completing payment via T/T, and arranging delivery through a shipping company to your country.
What is the warranty period?
The standard free warranty is one year from the day of successful commissioning.
Is a site visit possible?
Yes, we can prepare for a visit in advance if necessary. Generally, this applies to established business partners or agency relationships.
How long is the quotation valid?
Generally, our prices are valid for one month from the date of quotation. Prices may be adjusted according to raw material fluctuations and market changes.
Do the products have CE certification?
Yes, most of our medical instruments, including this fetal monitor, carry the CE certificate.
What is the battery working time?
The built-in Li-ion battery supports approximately 2 hours of continuous work without the printer running.
