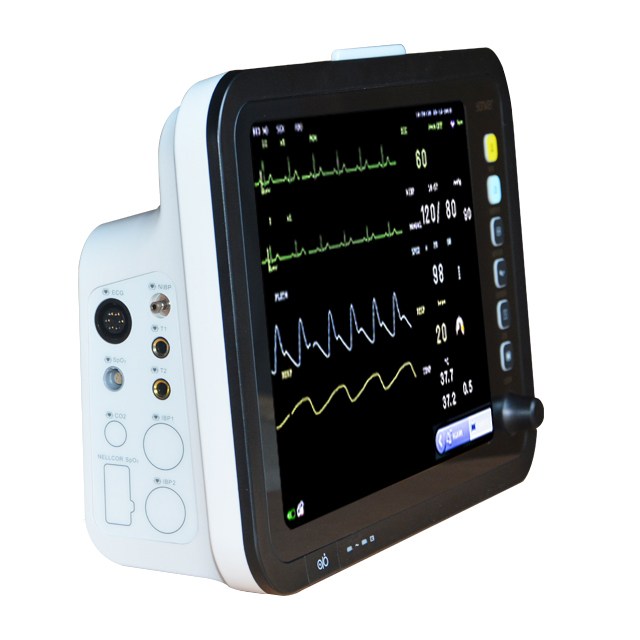

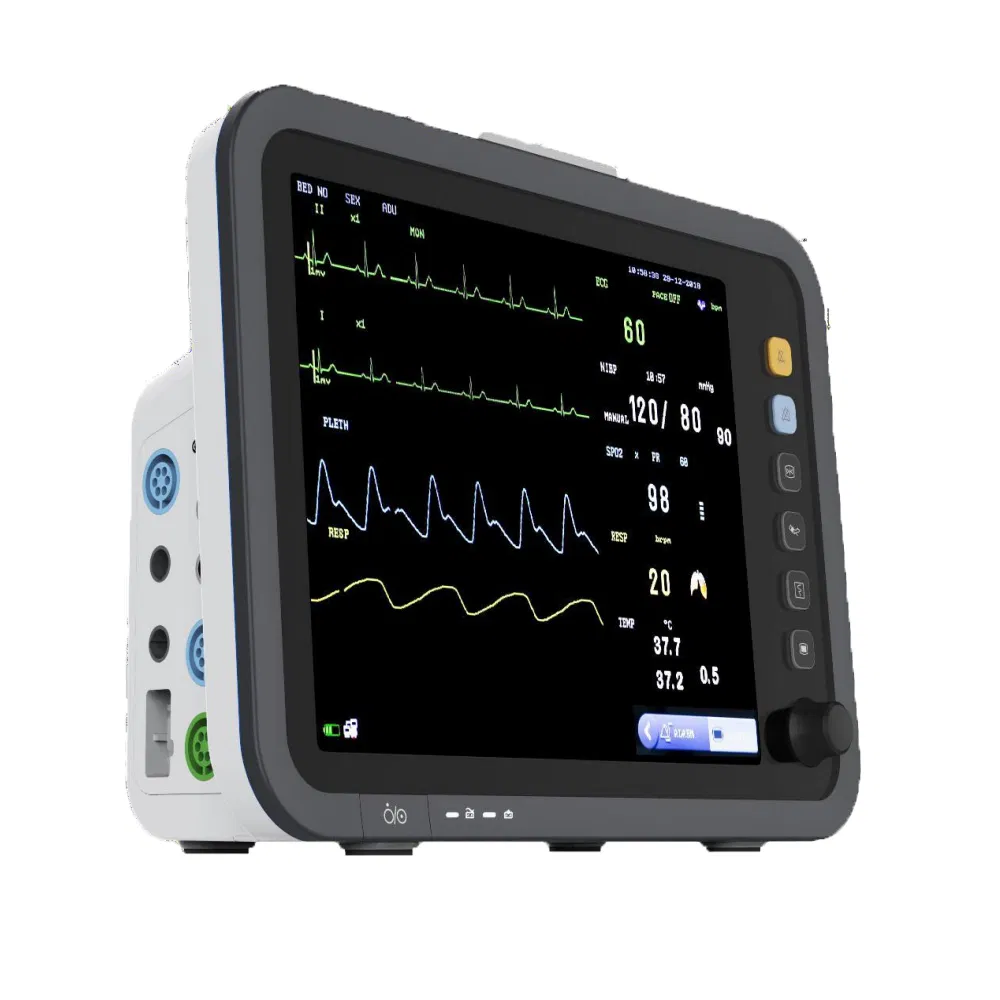

12.1 Inch Multiparameter Heart Rate Patient Monitors

Customization:	Available
Classification:	Patient Monitor
Type:	Patient Monitor

Basic Info

Model NO.

YJ-C800

Certification

CE, ISO13485

Group

Adult and Pediatric

Application Range

Adult/Pediatric/Neonatal/Medicines/Surgery

Power

AC: 100 ~240V, 50Hz/60Hz

Display

12.1" Real Color TFT Screen

Dimension

380mm X 350mm X 300mm

Weight

4.598 Kg

Multi-Parameter

ECG, SpO2, NIBP, Resp, Temp, PR, HR

ECG

5 Leads: Ra, La, Ll, Rl, V

IBP Range

-50~+300mmhg

SPO2 Range

0~100%

Product Description

12.1 inch Multiparameter Heart Rate Patient Monitors

Intended Use & Key Features

12.1-inch high-resolution color TFT LCD display.
Thinner and lighter in design, convenient and portable for users.
Real-time S-T segment analysis, pacemaker detection.
Various interfaces: standard screen, trend screen, oxy CRG screen, NIBP list screen, big front screen.
3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
Up to 400 groups NIBP list, 6000 seconds ECG waveform recall, 60 alarm event records recall, 7-day trend chart in storage.
Built-in rechargeable lithium battery, 2-hour working capability.
Wireless central monitoring system applicable to ICU/CCU/OR.

Technical Specifications

ECG Parameters
Input	3/5 wire ECG cable
Lead section	I, II, III, aVR, aVL, aVF, V
Gain selection	0.25, 0.5, 1, 2, Auto
Sweep speed	6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s
Heart rate range	15-300bpm
Accuracy	±1bpm or ±1%
NIBP (Non-Invasive Blood Pressure)
Test method	Oscillometer
Philosophy	Adult, Pediatric and Neonate
Measurement type	Systolic, Diastolic, Mean
Measurement parameter	Automatic, Continuous measurement
SPO2 & Temperature
SPO2 Range	0-100% (Accuracy ±2% between 70%-100%)
Pulse rate range	20-300bpm
Temperature Channels	2 channels (Rectal & Surface)
Temperature Range	0-50ºC (Accuracy ±0.1ºC)
Respiration & Packing
Respiration Range	0-150rpm
Packing Size	373728cm
G.W. / N.W.	7kg / 6kg

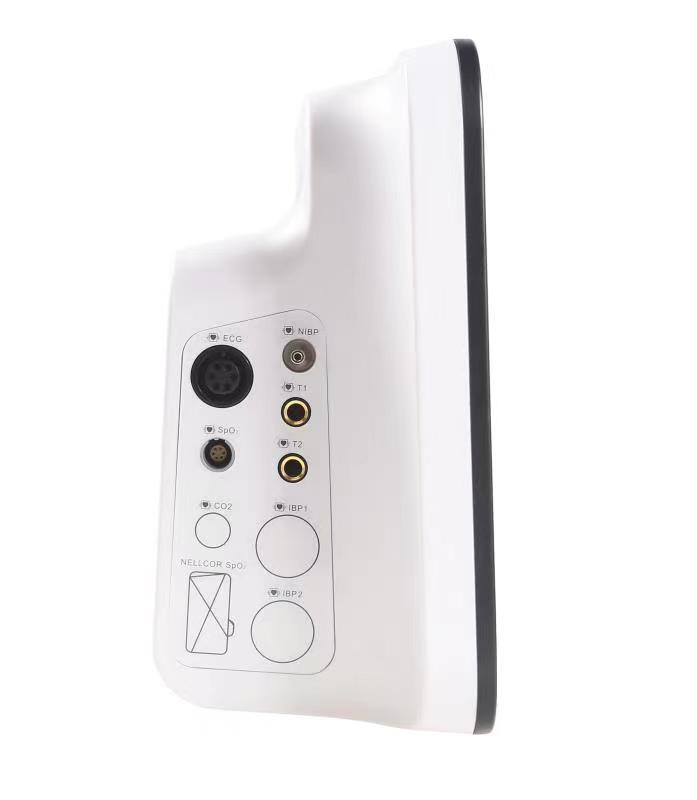

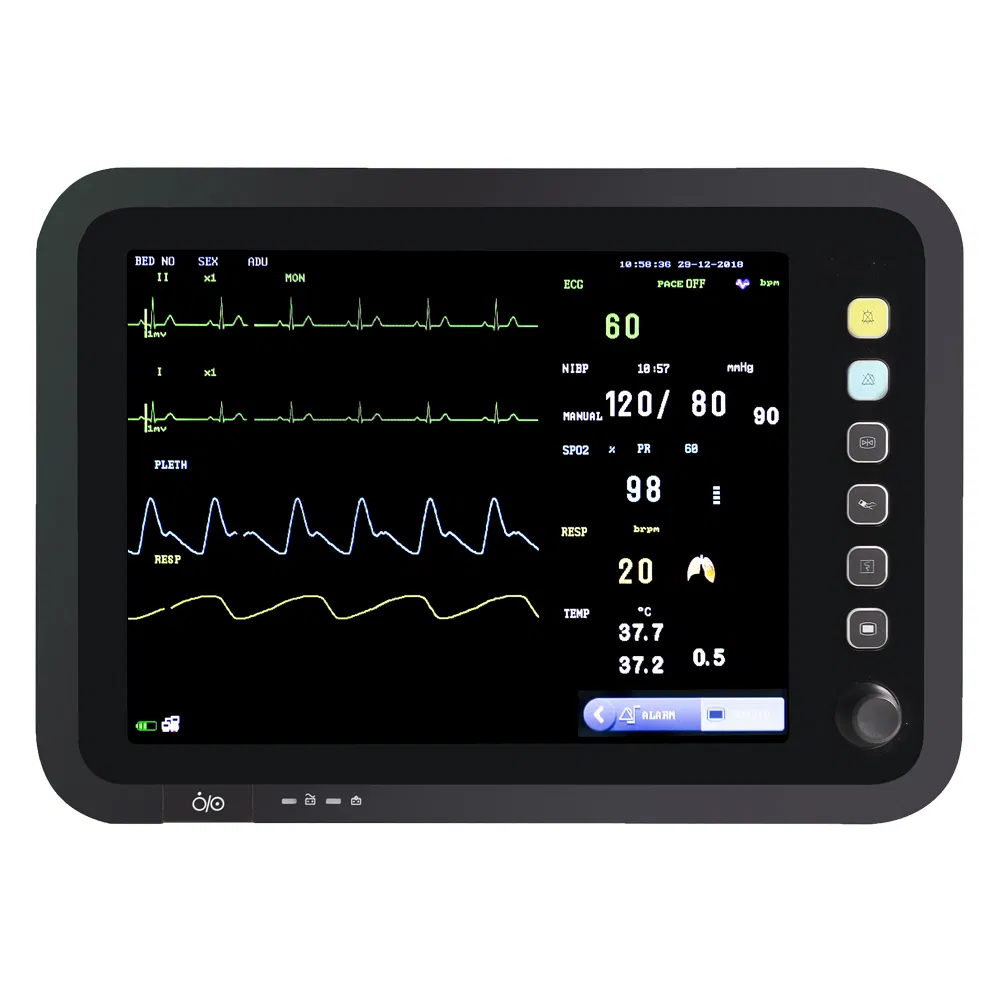

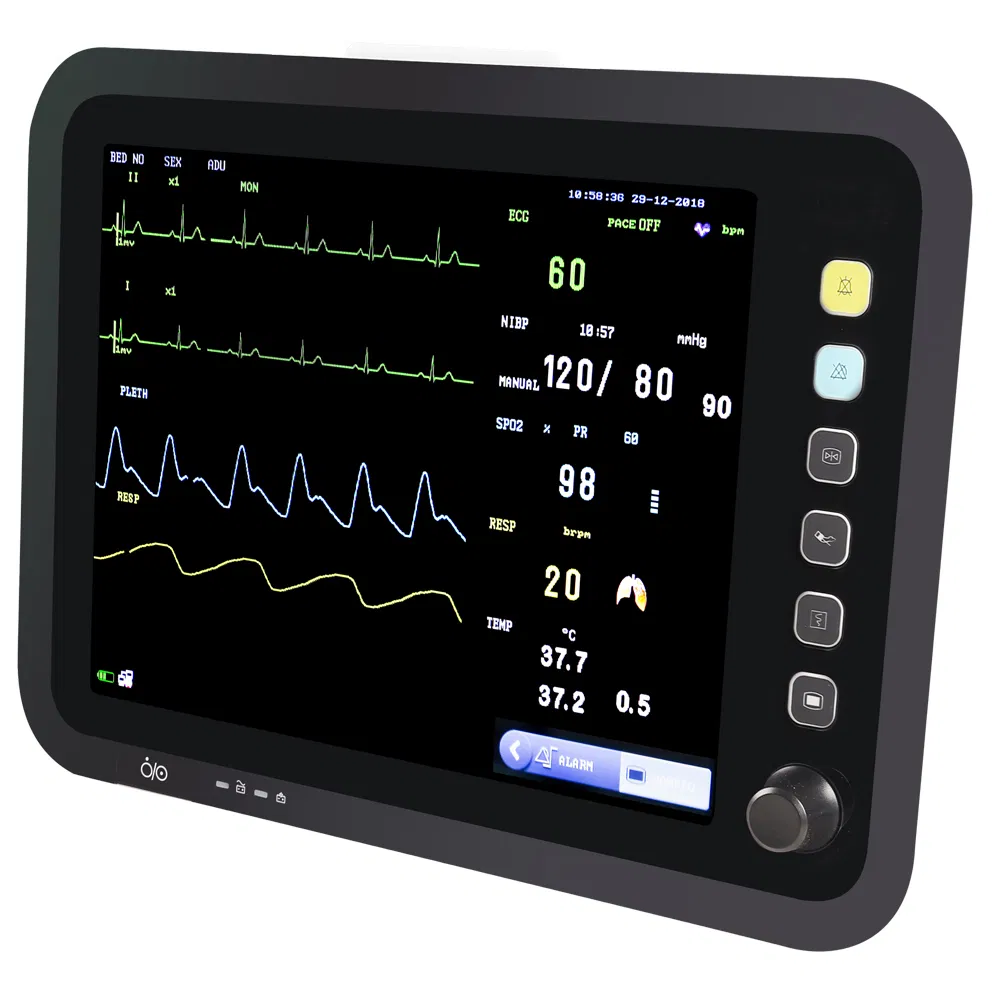

Detailed Product Views

Products Catalogue

ICU Equipment	Lab equipment	Medical image	Medical Cold Chain
Anesthesia machine	Biochemistry Analyzer	Ultrasound system	BBR
Medical ventilator	Hematology analyzer	X-ray	Deep freezer

Frequently Asked Questions

What is the screen size of the YJ-C800 monitor?

The monitor features a 12.1-inch high-resolution real color TFT LCD display for clear visualization of patient data.

Can this monitor be used for pediatric and neonatal patients?

Yes, the YJ-C800 is designed for a wide application range, including adult, pediatric, and neonatal patients.

How long does the battery last on a single charge?

The built-in rechargeable lithium battery provides approximately 2 hours of continuous working capability.

What parameters are tracked by this multi-parameter monitor?

It monitors core parameters including ECG, SpO2, NIBP, Respiration, Temperature, and Pulse Rate.

Does the device support data recall for emergencies?

Yes, it can store and recall up to 400 groups of NIBP lists, 60 alarm events, and 7 days of trend charts.

Is it portable for hospital use?

The YJ-C800 is designed to be thinner and lighter, making it highly convenient and portable for use in various clinical settings like ICU, CCU, or OR.
